Weidmuller 0514400000 TS 32X15/LL 2M/ST/ZN
- MPN: 0514400000
- PPN: WDM-0514400000
CAD
$14.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

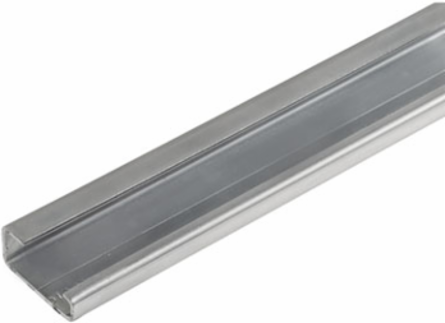

Rail, TS 32, with slot, Steel, galvanized, chromium-plated
Documentation & Downloads
Specifications
Mounting Rail
- Drill-hole diameter
- 5.2 mm
- Slit gap
- 11 mm
- Slit width
- 5.2 mm
- Solder eyelet hole diameter (D)
- 5.2 mm
- Thickness
- 1.5 mm
Short circuit strength corresponds to E-Cu wire35 mm²
Slit length25 mm
Slotted drill holesYes
Spacing of holes, centre-to-centre36 mm
Classifications
- ETIM 6.0
- EC001285
- eClass 9.0
- 27-40-06-02
- eClass 10.0
- 27-40-06-02
ETIM 7.0EC001285
eClass 9.127-40-06-02
UNSPSC30-21-18-01
Dimensions And Weights
- Width
- 32 mm
- Height
- 33 mm
- Depth
- 15 mm
- Net weight
- 667 g
Width (inches)1.26 inch
Height (inches)1.299 inch
Depth (inches)0.591 inch
Approvals
- ROHS
- Conform
