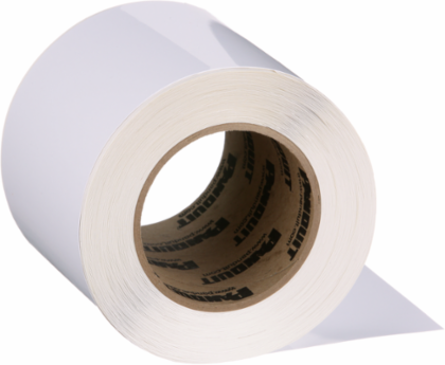

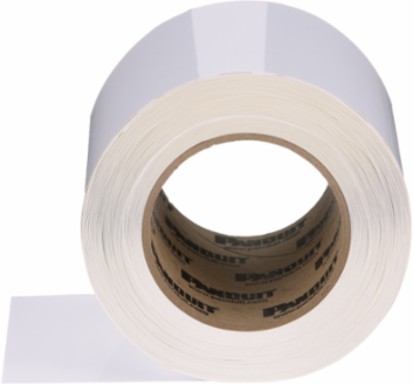

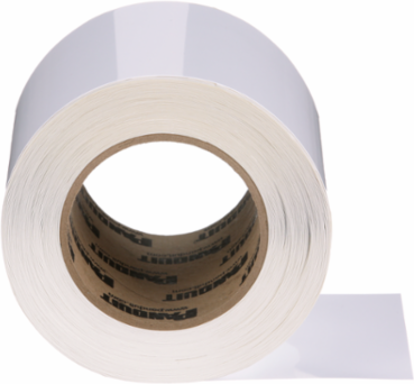

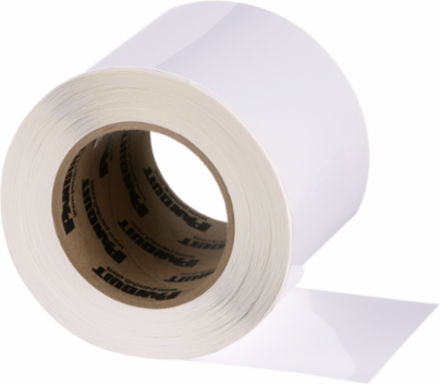

Panduit R100X225V1T Turn-Tell® R100X225V1T Turn-Tell, Vinyl, White, 2500 Lbls, TT, 2.25"x1", 0.75"
- MPN: R100X225V1T
- UPC: 074983219360
- PPN: PAN-R100X225V1T
- UNSPSC: 55121614
CAD
$0.41
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

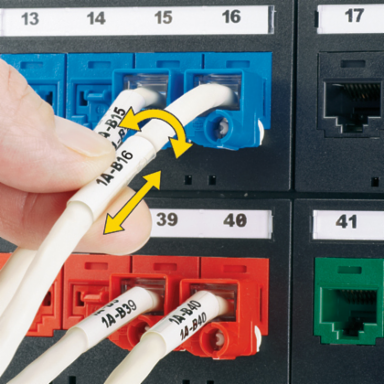

The thermal transfer Turn-Tell label made of vinyl has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.75" (19.1 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 2.25" long (25.4 x 57.2 mm). It has a 3.0" (76.2 mm) core and supports 8-4 AWG wire /cable, Cat. 6/6A FTP and Cat. 6 UTP cable. It has 4 labels per row and comes in packages of 2500. It can be used with Easy-Mark Plus™ Labeling Software.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Number of Labels | 2500 |
| Cable Type | 8-4 AWG/Cat. 6/6A FTP/Cat. 6 UTP |
| Overall Length (mm) | 57.2 |
| Overall Width (mm) | 25.4 |
| Material | Vinyl |
| Minimum Operating Temperature (°C) | -40 |
| Product Type | Turn-Tell Label |
| Print-On Area Height (In.) | 0.75 |
| Maximum Operating Temperature (°F) | 150 |
| Print-On Area Height (mm) | 19.1 |
| Minimum Cable Diameter (mm) | 7.1 |
| Compatible Wire Gauge | 8-4 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Minimum Cable Diameter (In.) | 0.28 |
| Label Application | Cable & Wire Marking |
| Sub Brand | Turn-Tell® |
| Printer Type | Thermal Transfer |
| Overall Length (In.) | 2.25 |
| Color | White |
| Note | For use with TDP printers |
| Maximum Operating Temperature (°C) | 66 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Cable Diameter (mm) | 9.9 |
| Overall Width (In.) | 1 |
| Maximum Cable Diameter (In.) | 0.39 |
| Number of Labels per Row | 4 |
Packaging Details
| UPC | 07498321936 |
|---|---|
| Standard Package Volume Ft3 | 0.6440 |
| Std Package Height In | 4.5 |
| Std Package Length In | 6.5 |
| Std Package Width In | 6.5 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 2500 |
| Standard Carton Weight Pounds | 0.0000 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 2,500.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983219360 |
|---|---|
| Standard Package Weight Pounds | 3.0750 |
| Std Package Height MM | 114.3 |
| Std Package Length MM | 165.1 |
| Std Package Width MM | 165.1 |
| UOM EA PK | PK |
| Standard Carton Volume Ft3 | 0.0000 |
| Std Ctn Qty | 0 |
| EAN | 00074983219360 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
