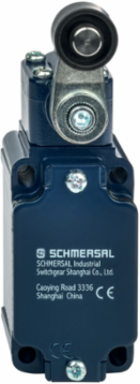

Schmersal 101161382 Position Switch TVH 335-01/01Z-M20, 40.5 mm x 76 mm x 38 mm, Metal Enclosure
- MPN: 101161382
- PPN: SCM-101161382
CAD
$171.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch TVH 335-01/01Z-M20, 40.5 mm x 76 mm x 38 mm, Metal Enclosure
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit
- 40,5 mm x 76 mm x 38 mm
- Actuator heads can be repositioned by 4 x 90°
- Design to EN 50041
Documentation & Downloads
Specifications
Safety appraisal
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN 60947-5-1
Mission Time20 Year(s)
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- Opener (NC)
- Bounce duration, maximum
- 2 ms
Required rated short-circuit current to EN 60947-5-11,000 A
Utilisation category AC-154 A
Utilisation category DC-134 A
Switching principleCreep circuit element
Switching frequency5,000 /h

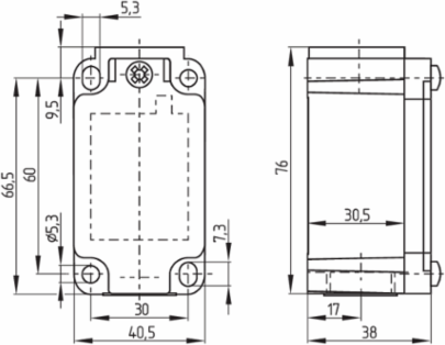

Mechanical data - Dimensions
- Length of sensor
- 60.6 mm
- Height of sensor
- 134 mm
Width of sensor40.5 mm
Ambient conditions - Insulation value
- Rated insulation voltage U
- 500 V
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
General data - Features
- Safety functions
- Yes

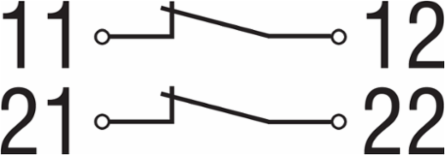

Number of safety contacts2
General data
- Housing construction form
- Norm construction design
- Enclosure material
- Light alloy die-casting
- Material of the contacts, electrical
- Silver
- Roller material
- Plastic
Actuator type to DIN EN 50041A
Enclosure coating materialpainted
Lever materialMetal film
Gross weight265 g
Ambient conditions
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529
- Ambient temperature, maximum
- +80 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.

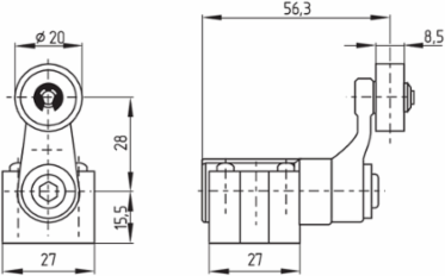

Mechanical data
- Actuating element
- Roller lever
- Actuating speed, maximum
- 2.5 m/s
- Note (Switchover time)
- Switchover time in accordance with actuating speed
Mechanical life, minimum30,000,000 Operations
Note (Actuating speed)Actuating speed with actuating angle 30° to switch axis
Actuating torque, minimum0.3 Nm
Approval - Standards
- Certificates
- cULus | CCC | EAC
