Schmersal 101162579 Position Switch with Rod Lever, IP65/IP67, Metal Enclosure, 40.5 x 76 x 38 mm
- MPN: 101162579
- PPN: SCM-101162579
CAD
$179.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch with Rod Lever, IP65/IP67, Metal Enclosure, 40.5 x 76 x 38 mm
Features
- Snap action with constant contact pressure up to switching point
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit
- 40,5 mm x 76 mm x 38 mm
- Actuator heads can be repositioned by 4 x 90°
- Design to EN 50041
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC

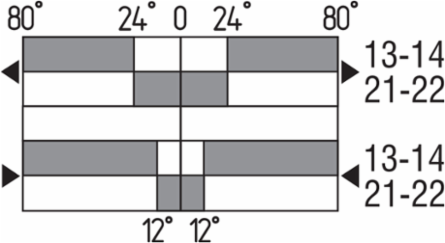

- Switching element
- NO contact, NC contact
- Switching frequency
- 5,000 /h
- Material of the contacts, electrical
- Silver
Required rated short-circuit current1,000 A
Utilisation category AC-154 A
Utilisation category DC-134 A
Switching principleSnap action
Switchover time, maximum2 ms

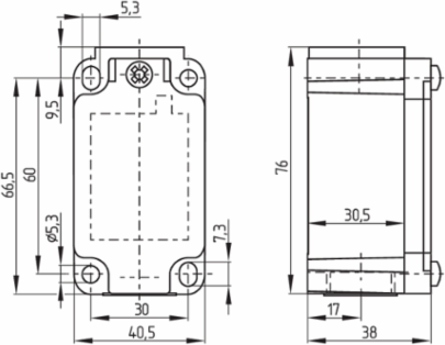

Mechanical data - Dimensions
- Length x Width x Height
- Height of sensor: 111.5 mm (without rod)
- Width of sensor
- 40.5 mm
Length of sensor38 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Number of auxiliary contacts
- 1
Number of safety contacts1
General data
- Housing construction form
- Norm construction design
- Enclosure coating material
- painted
- Material of the rod
- Plastic
Enclosure materialLight alloy die-casting
Lever materialMetal film
Gross weight265 g
Safety classification
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65 | IP67
Ambient temperature-30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data

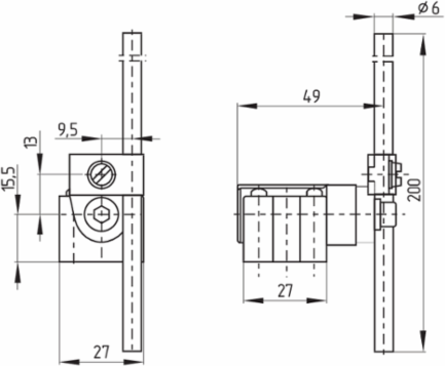

- Actuating element
- Rod lever
- Actuating speed, maximum
- 2.5 m/s
- Note Bounce duration
- Bounce duration in accordance with actuating speed
Mechanical life, minimum30,000,000 Operations
Note (Actuating speed)Actuating speed with actuating angle 30° to switch axis
Actuating torque, minimum0.3 Nm
Approvals - Standards
- Certificates
- cULus | CCC
