ABB TVOC-2-E1 TVOC-2-E1 Extension
- MPN: TVOC-2-E1
- UPC: 888614192409
- PPN: ABB-TVOC-2-E1
- UNSPSC: 32151802
CAD
$3245.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

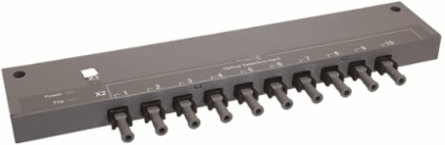

The extension unit TVOC-2-E1 can be assembled on the TVOC-2 main unit to increase the number of detector inputs. There are 10 detector inputs per extension unit E1 and up to 2 extension units can be added to the main unit, creating 30 detector inputs in total.
Specifications
Additional Information
| Additional Information | ARC MONITOR TVOC-2 EXTENSION |
|---|---|
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Product Main Type | TVOC-2 |
| RoHS Date | 1009 1 |
| Mounting Type | Mounted on main unit |
|---|---|
| Number of Auxiliary Contacts NC | 0 |
| Power Loss | 1 W |
| Product Name | Extension |
| Suitable For | TVOC-2 |
Dimensions
| Product Net Width | 230 mm |
|---|---|
| Product Net Depth / Length | 25 mm |
| Product Net Height | 50 mm |
|---|---|
| Product Net Weight | 0.114 kg |
Classifications
| ETIM 9 | EC002911 - Arc detection and mitigation system |
|---|---|
| Object Classification Code | B |
| eClass | V11.0 : 27142214 |
| IDEA Granular Category Code (IGCC) | 3594 >> Interface module |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Environmental
| Ambient Air Temperature | Operation -25 ... +55 °CStorage -25 ... +55 °C |
|---|---|
| REACH Declaration | 2AGS2022-006202 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SFC170003D0201 |
|---|---|
| RoHS Information | 2AGS2022-006277-RoHS |
Ordering
| Order Code US and Canada | TVOC-2-E1 |
|---|---|
| E-Number (Norway) | 4116452 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 2712001 |
|---|---|
| E-Number (Sweden) | 2801707 |
| Customs Tariff Number | 85389099 |
