ABB TVOC-2-E3 TVOC-2-E3 Extension
- MPN: TVOC-2-E3
- UPC: 888614192423
- PPN: ABB-TVOC-2-E3
- UNSPSC: 32151802
CAD
$3245.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

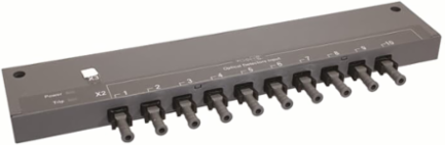

The extension unit TVOC-2-E3 can be assembled on the TVOC-2 main unit to increase the number of detector inputs. There are 10 detector inputs per extension unit E3 and up to 2 extension units can be added to the main unit, creating 30 detector inputs in total. Only TVOC-2-DP60 60 m cable detector can be used with the E3 extension unit.
Specifications
Additional Information
- Additional Information
- ARC MONITOR TVOC-2 EXTENSION FOR 60M CABLE
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NO
- 0
- Product Main Type
- TVOC-2
- RoHS Date
- 1009 1
Mounting TypeMounted on main unit
Number of Auxiliary Contacts NC0
Power Loss1 W
Product NameExtension
Suitable ForTVOC-2
Dimensions
- Product Net Width
- 230 mm
- Product Net Depth / Length
- 25 mm
Product Net Height50 mm
Product Net Weight0.114 kg
Classifications
- ETIM 9
- EC002911 - Arc detection and mitigation system
- Object Classification Code
- B
- eClass
- V11.0 : 27142214
IDEA Granular Category Code (IGCC)3594 >> Interface module
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -25 ... +55 °C
- REACH Declaration
- 2AGS2022-006202
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SFC170003D0201
RoHS Information2AGS2022-006277-RoHS
Ordering
- E-Number (Finland)
- 2712003
- E-Number (Sweden)
- 2801708
- Customs Tariff Number
- 85389099
E-Number (Norway)4116454
Minimum Order Quantity1 piece
