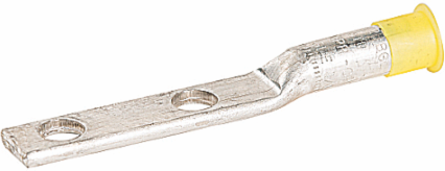

Blackburn GLE 2/0 N Aluminum Two-Hole CSA Die Lugs 2/0 Wire Size, 3.13 Inch Length
Blackburn GLE 2/0 N Aluminum Two-Hole CSA Die Lugs 2/0 Wire Size, 3.13 Inch Length
- MPN: GLE 2/0 N
- PPN: T-B-GLE 2/0 N
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$65.02/ EA
Description
Aluminum Two-Hole Compression Lug - Wire Size 2/0 Compresses or Compact, Length 5,285 inch, Pad woth (2) 1/2 inch Diameter Holes on 1.750 inch Center. Dies CSA24, 702, 298. Oxide Inhibitor with Black Cap.
Features
- Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made from Aluminum for High Strength and Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Use with Aluminum and Copper Conductors. Provide high strength and high conductivity. Prevents oxidation and keeps out moisture. Easy Identification.
- Standard
- ANSI C119.4
- Conductor Range
- 2/0
- Finish
- Bare
- Bolt Size
- 1/2 inch
IGCC4668 Wire or cable compression connector
TypeTwo-Hole CSA Die Lugs
ApplicationCompression Connector
SizeLength 3.13 inches
MaterialAluminum
InsulationNo
Packaging
- Outer Quantity
- 50
- Weight Uom
- 0.15 lbs. Each
Outer Dimensions (inches)7.5x6x6.5
