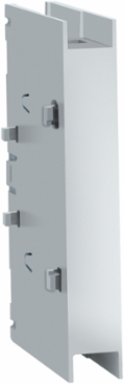

Schneider Electric VLS1GD1 TeSys VLS Disconnect Switch with Ground Terminal, 16A-40A, Size 1 (36mm)
- MPN: VLS1GD1
- PPN: SCH-VLS1GD1
CAD
$51.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This grounding terminal block can be added to a VLS3P016D1, VLS3P025D1, VLS3P032D1 or VLS3P040D1 door mount switch. Grounding block can be mounted on the right or left hand side. The operational voltage of this grounding block is 600 Vac 50/60 Hz. This grounding block has a 63 A current rating. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Grounding block is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.09 lbs. This grounding block is cULus Listed and meets IEC 60947-3 requirements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
Depth43.6 mm
Physical Attributes
- Color
- Gray
Important Information Attributes
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Certificate Agency
- cULus, GL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1943
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- VLS
- Device Short Name
- VLS1G
- Fire Resistance
- 960 °C IEC 60695-2-11
- Network Frequency
- 50/60 Hz
- Performance Level
- high performance
- Product Or Component Type
- additional earthing block
- Returnability
- Yes
- Tightening Torque
- 1.8-2 N.m screw clamp terminals
- Height Nominal
- 78 mm
- [Ith] Conventional Free Air Thermal Current
- 63 A (at 55 °C)
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Mounting Locationright, left
Connections - Terminalsscrew clamp terminals 10-10 mm² solid, screw clamp terminals 16-16 mm² flexible - without cable end
Local Publishable Date2026-07-16
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Contacts Type And Compositionwithout
Energy Efficiency OptimizedFalse
Mounting Supportdoor
Network TypeAC
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal12 mm
[Ithe] Conventional Enclosed Thermal Current63 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Package Weight(Lbs)39.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- additional earthing block
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
