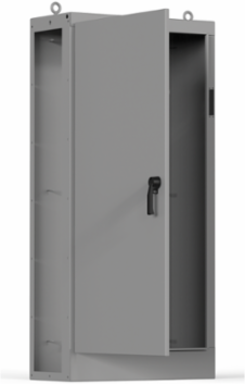

nVent Hoffman AU90X4018LUCLP Universal Free-Stand Left Side Open, 90.13x40.24x18.11, Gray, Steel, Univ CO
- MPN: AU90X4018LUCLP
- UPC: 783510604356
- PPN: HOF-AU90X4018LUCLP
- UNSPSC: 39121334
CAD
$4961.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Universal Free-Stand Left Side Open, 90.13x40.24x18.11, Gray, Steel, Univ CO
Features
- Seams are continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Order panels separately
- Data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Bonding provision on door
- Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
- Note: Sequestr solutions are compatible with Universal Free-Stand enclosures; reference Sequestr spec sheets and installation instructions for more details
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 1,022 |
| Protection Rating | NEMA Type 4 |
| Finish | Powder Coated |
| Color Code | ANSI 61 |
| Door Thickness | 2.66 |
| Weight | 389 |
| Height (H) | 2,286 |
|---|---|
| Depth (D) | 460 |
| Material | Mild Steel |
| Color | Gray |
| Body Thickness | 3.04 |
| Cutout Type | Universal |
