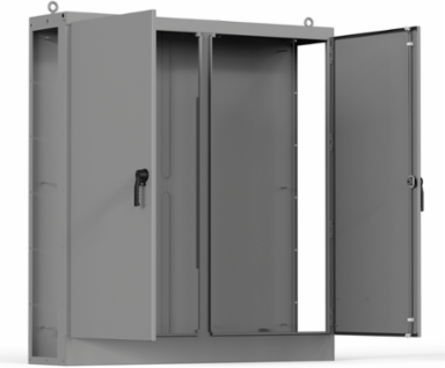

nVent Hoffman AU90X7824BLP Universal Free-Stand Both Sides Open, 90.13x77.99x24.13, Gray, Steel
- MPN: AU90X7824BLP
- UPC: 783510604462
- PPN: HOF-AU90X7824BLP
- UNSPSC: 39121334
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Universal Free-Stand Both Sides Open, 90.13x77.99x24.13, Gray, Steel
Features
- Seams are continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Order panels separately
- Data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Bonding provision on door
- Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
- Note: Sequestr solutions are compatible with Universal Free-Stand enclosures; reference Sequestr spec sheets and installation instructions for more details
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,981
- Protection Rating
- NEMA Type 4
- Finish
- Powder Coated
- Color Code
- ANSI 61
- Door Thickness
- 2.66
- Weight
- 692
Height (H)2,286
Depth (D)613
MaterialMild Steel
ColorGray
Body Thickness3.04
Cutout TypeNo Cutout
