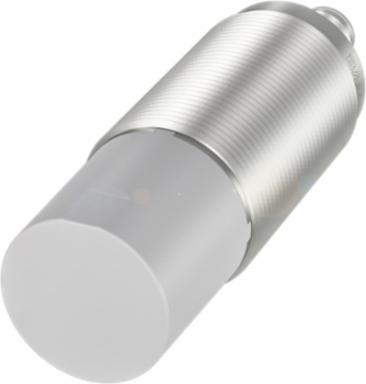

Balluff BIS U-4A7-082-01C-07-S4 UHF read/write heads with integrated processor unit (860/960 MHz) - BIS01E4

UHF read/write heads with integrated processor unit (860/960 MHz) - BIS01E4

Balluff BIS U-4A7-082-01C-07-S4 UHF read/write heads with integrated processor unit (860/960 MHz) - BIS01E4

MPN: BIS U-4A7-082-01C-07-S4
PPN: BAL-BIS01E4

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1479.51/ EA

Loading add to cart quantity...

Description

UHF read/write heads with integrated processor unit (860/960 MHz) - BIS01E4

Specifications

Specifications

Country of Origin: Hungary

Product Group: UHF (860...960 MHz)

Dimension: Ø 30 x 98 mm

Polarization: circular

Connection: M12x1-Male, 4-pin, A-coded

Interface: IO-Link 1.1

Ambient temperature: 0...70 °C

Approval/Conformity: CE; UKCA; WEEE; Ecolab; cULus

Secondary features for condition monitoring: Vibration monitoring; Inclination monitoring and installation aid; Internal temperature monitoring; Internal humidity detection

Special characteristicsWashdown Plus; Washdown

Working frequency865…868 MHz

Antenna typePlanar

Output power adjustable-9 dBm…+16 dBm (0.13 mW…40 mW)

Housing material1.4404 stainless steel

Operating voltage Ub18...30 VDC LPS Class 2

IP rating per IEC 60529IP68; IP69K

Secondary featuresIdentification; Device Discovery; Signal Quality Monitoring; Basic Statistics; Operating Hours Counter; Boot Cycle Counter; Voltage and Current Monitoring; Extreme Environment Status; Storage Usage Monitoring; Variant Configuration; Pin Assignment
