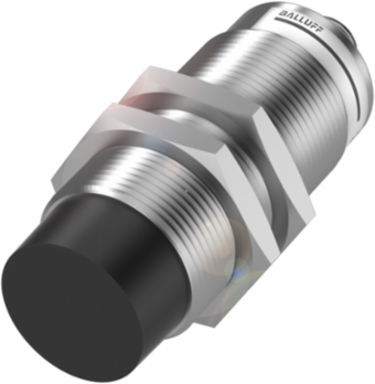

Balluff BIS M-400-072-001-07-S4 HF read/write heads (13.56 MHz) with integrated processor unit - BIS0108

HF read/write heads (13.56 MHz) with integrated processor unit - BIS0108

Balluff BIS M-400-072-001-07-S4 HF read/write heads (13.56 MHz) with integrated processor unit - BIS0108

MPN: BIS M-400-072-001-07-S4
PPN: BAL-BIS0108

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$798.57/ EA

Loading add to cart quantity...

Description

HF read/write heads (13.56 MHz) with integrated processor unit - BIS0108

Specifications

Specifications

Country of Origin: Hungary

Dimension: Ø 30 x 83 mm

Antenna type: round

Connection: Connector, M12x1-Male, 4-pin

Interface: IO-Link 1.1

Process data in: 32 bytes

Operating voltage Ub: 18...30 VDC Supports only LPS/Class 2

IP rating per IEC 60529: IP67

Product GroupHF (13.56 MHz)

Installationmetal-free (clear zone)

Supported data carrier typesDIN ISO 14443; DIN ISO 15693

Housing materialBrass, Nickel-plated brass nuts, nickel-plated

Data transfer rateCOM2 (38.4 kBaud)

Process data out32 bytes

Ambient temperature0...70 °C

Approval/ConformityCE; UKCA; cULus; FCC; IC (Radio); EAC; WEEE
