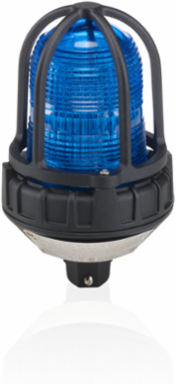

Federal Signal 154XST-024B-CN ULC Listed Private Mode Fire Strobe, 24 VDC, hazardous location, four-wire, Blue
- MPN: 154XST-024B-CN
- UPC: 782979100140
- PPN: FDS-154XST-024B-CN
- UNSPSC: 39111706
CAD
$1764.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These models are hazardous location strobe lights that provide 60 high-intensity flashes per minute. This warning light is available in 24VDC with a 4-wire supervisable power circuit for fire alarm and suppression supervised control panels.These warning lights offer an aluminum base, coated for corrosion resistance that is ready for mounting on a 3/4-inch pipe. The dome guard (included) fits over the glass dome to protect it against accidental collision with moving equipment, such as forklifts.These rugged strobe warning lights are specifically designed for hazardous locations or corrosive environments where a very bright visual signal is required. This warning light can be used for plant evacuation or other communication needs.
Features
- Available in 24VDC
- Four wires and supervisory diode
- Clear dome
- 3/4-inch pipe mount
- Dome guard included
- Conformal coated PCBA
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Rated
- UL Listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class III; Class I, Zone 2, Group IIC
- 154XST-024*-CN is ULC Fire Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Certification Listing
- UL Fire
- Diameter (mm)
- 139.7
- Flashes Per Minute
- 60
- Lens Color
- Blue
- Operating Current Amps
- 0.483 – 0.226
- Operating Voltage
- 24 Vdc Regulated (16-33)
- Visual Signals Lens Color
- Blue
- Height
- 9.25 in, 23.495 cm
Weight3.8 lbs
Candela Effective Power3 with guard, 6 without guard
Diameter (in)5.5
Flash Pattern Type1x Flash
AvailabilityContact Us for Availability
Mount Type3/4-Inch NPT Pipe
Operating Temp.-67˚ to +150˚ F (-55˚ to +66˚ C)
Visual Signals Certification ListingULC Fire CID2
Depth9.25 in, 23.495 cm
Diameter5.5 in, 13.97 cm
