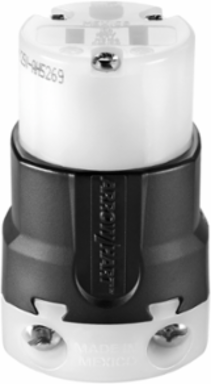

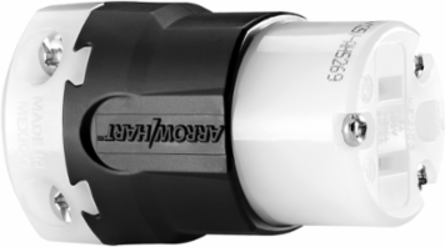

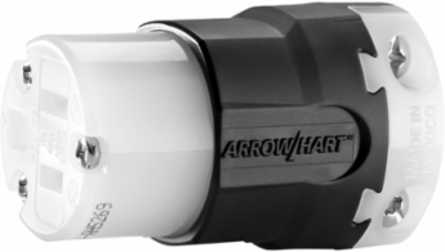

Cooper Wiring Devices AH5269 Straight Blade Connector, Ultra Grip, 15A, 125V, NEMA 5-15R, Nylon, Black (AH5269)
- MPN: AH5269
- UPC: 032664737534
- PPN: COW-AH5269
CAD
$15.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Arrow Hart ultra grip straight blade connector, #16 - #12 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-15R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 15A |
|---|---|
| NEMA Configuration | 5-15R |
| Number of Poles | Two-pole |
| Connection Type | Screw |
| Allowable Wire Size | #16-12 AWG |
| Contact Material | Brass |
| Color | Black |
| Device Grade | Extra heavy-duty industrial specification grade |
| Design Type | Straight blade |
| Voltage Rating | 125V |
|---|---|
| Torque Rating | 14 lbf-inch |
| Number of Wires | 3 |
| Wiring Method | Back wire |
| Cord Range | 0.33-0.66 in diameter |
| Face/Body Material | Nylon |
| Application | Industrial |
| Style Type | Straight body |
