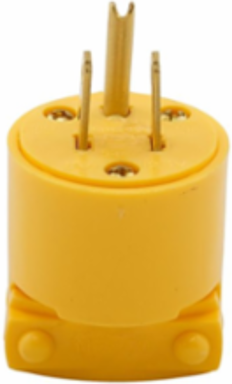

Eaton 4867-BOX Eaton Arrow Hart straight blade plug — NEMA Configuration: 5-15P, Voltage Rating: 125 V, Amperage Rating: 15A
- MPN: 4867-BOX
- UPC: 032664340901
- PPN: COW-4867-BOX
CAD
$2.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart straight blade plug, #18-12 AWG, 15A, 125V, Back wire, Yellow, Brass, Vinyl, 5-15P, Two-pole, Three-wire, Screw, Vinyl,
Features
- Angled body
Specifications
Key Specifications
| Length | 2.5 in |
|---|---|
| Width | 1.5 in |
| Product Type | Straight blade plug |
| Amperage Rating | 15A |
| Contact Material | Brass |
| Wiring Method | Back wire |
| Number Of Poles | Two-pole |
| Material | Vinyl |
| Connection Type | Screw |
| NEMA Configuration | 5-15P |
| Design Type | Straight blade |
| Product Series | Commercial And Residential Grade Vinyl Straight Blade Devices |
| Height | 1.5 in |
|---|---|
| Weight | 0.105 lbs |
| Device Type | Plug |
| Voltage Rating | 125 V |
| Application | Commercial |
| Number Of Wires | 3 |
| Style Type | Straight body |
| Color | Yellow |
| Allowable Wire Size | #18-12 AWG |
| Torque Rating | 15 lbf-inch |
| Receptacle Type | Two-pole, three-wire, grounding |
