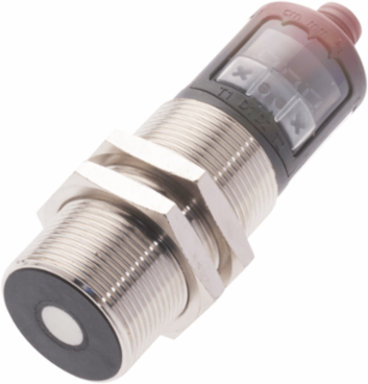

Balluff BUS M30M1-NPX-07/035-S92K Ultrasonic sensors with a digital output BUS M30M1-NPX-07/035-S92K
- MPN: BUS M30M1-NPX-07/035-S92K
- PPN: BAL-BUS005P
CAD
$571.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
They measure fill levels, heights and sag without making contact. Because they are universally applicable, they work independently of color and surface texture. High resolution, high ranges and small blind spots guarantee the utmost precision. The ultrasonic sensors are distinguished by their voltage or power output and variants with an additional switching output.
Documentation & Downloads
Specifications
Key Specifications
| Switching output | NPN NO/NC |
|---|---|
| Housing material | BrassPBT, TPU |
| Range | 65-600 mm |
| Approval/Conformity | cULus LISTED, CE, EAC, WEEE |
| IP rating | IP67 |
| Operating voltage Ub | 9-30 VDC |
| Connection | Connector, M12x1-Male |
|---|---|
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Switching frequency | 12 Hz |
| Ambient temperature | -25-70 °C |
| Repeat accuracy | ± 0.15 % FS |
