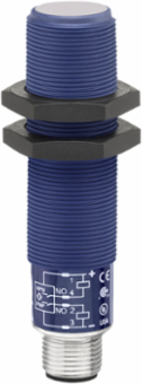

Telemecanique Sensors SM650A21600 Hyde Park, ultrasonic sensor cylindrical M18, Sn51mm, NO, 12...24 VDC, M12
Telemecanique Sensors SM650A21600 Hyde Park, ultrasonic sensor cylindrical M18, Sn51mm, NO, 12...24 VDC, M12
- MPN: SM650A21600
- PPN: TES-SM650A21600
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$824.58/ EA
Description
This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor has a cylindrical M18 design and fixed sensing type window. It supports 50.8mm nominal sensing distance and 1 NO PNP/NPN discrete output. The ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and current consumption of 60mA. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of ULTEM with silicone rubber front. Its dimensions are 73.91mm x (length) x 18mm (width) x 18mm x (height). It weighs 0.033kg. It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target's shape, texture, color, or transparency.
Specifications
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Shock Resistance
- 30 gn in all 3 axes 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67
- Relative Humidity
- 100-100 % without condensation
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-60 °C
Vibration Resistance+/-1 mm 10-55 Hz)IEC 60068-2-6
MarkingCE
Ambient Air Temperature For Storage-40-100 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Repeat Accuracy
- 0.07 %
- Minimum Size Of Detected Object
- cylinder diameter 1.59 mm - up to 63.5 mm sensing distance
- Transmission Frequency
- 500 kHz
- Blind Zone
- 0-19 mm
- Length
- 73.91 mm
- Current Consumption
- 60 mA
- Beam Angle
- 7 °
- Width
- 18 mm
- [Sn] Nominal Sensing Distance
- 50.8-50.8 mm
Height18 mm
Maximum Switching Current100 mA reverse polarity protection
[Sa] Assured Operating Distance25.4-50.8 mm
[Sd] Sensing Range25.4-50.8 mm
Net Weight0.033 kg
Maximum Differential Travel0.35 mm
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Depth18 mm
Specifications
- Iso Thread
- M18 x 1
- Discrete Output Type
- PNP/NPN
- Type Of Output Signal
- discrete
- Material
- plastic
- Series Name
- Superprox 600
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M18
- Front Material
- silicone rubber
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowfixed
Discrete Output Function1 NO
Range Of ProductHyde Park
Wiring Technique4-wire
Supply Voltage Limits10-28 V DC
Electrical Connectionmale connector M12 4 pins
Enclosure MaterialULTEM
Device Short NameSM650
