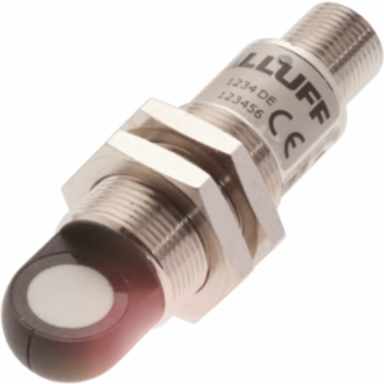

Balluff BUS W18M1-XB-12/100-S92G Ultrasonic sensors with analog output BUS W18M1-XB-12/100-S92G
- MPN: BUS W18M1-XB-12/100-S92G
- PPN: BAL-BUS0053
CAD
$722.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Position detection or object detection in solid, powdery and fluid media – they count and monitor the presence of objects without contact. Universally applicable, they work independently of color and surface texture. Fog, dust and impurities are not a problem for them. Their high resolution and small blind spots guarantee the highest precision. Ultrasonic sensors distinguish themselves by means of their output signal.
Documentation & Downloads
Specifications
Key Specifications
- Style
- Ø 18 mm
- Connection
- Connector, M12x1-Male, 5-pin
- Material sensing surface
- PU foam/Epoxy resin/Glass
- Approval/Conformity
- cULus LISTED, CE, EAC, WEEE
- IP rating
- IP67
- Operating voltage Ub
- 10-30 VDC
Analog outputAnalog, current 4…20 mA
Housing materialBrassPBT
Range120-1300 mm
Ambient temperature-25-70 °C
Repeat accuracy± 0.15 % FS
