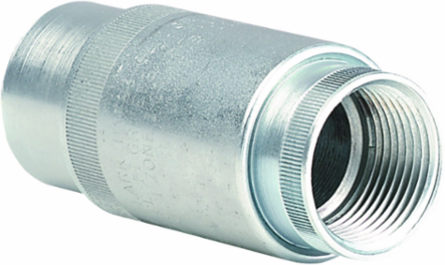

Killark UNFS2 Short Female Expansion Conduit Union 3/4 Inch Zinc Plated Steel
- MPN: UNFS2
- UPC: 783936010564
- PPN: HBL-UNFS2
- UNSPSC: 39131708
CAD
$161.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
UNF Series Fittings - Expansion Conduit Unions - Female - Short - Hub Size 3/4 In
Features
- Tapered threaded hubs (NPT) for rigid conduit and IMC
- Telescoping components allows conduit to be inserted between fixed threaded hubs
- Internal copper alloy grounding spring assures positive grounding
- Close tolerance of mating parts eliminates passage of flame
- Compact diameter allows use where conduit is closely spaced
- Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zone 1, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Glossy gray
- Height
- 0.1 in
- Length
- 3.53 in
- Type
- Short Female Expansion Conduit Union
- Finish Type
- Zinc Plated
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- UNF Series
- BOX SIZE
- 4.375x5.750x5.875 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936010564
- Master Pack Description
- Each
Dimensions3.53 in x 1.44 in x 0.1 in
ApplicationTo provide for slight expansion and contraction of conduit runs. To retrofit sections of conduit runs.
FinishZinc Plated
Hub Size3/4"
Special FeaturesTapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Width1.44 in
ARRA CompliantContact Manufacturer
Description - Invoice3/4" ST EXP SHORT UNION FEMALE
Harmonization Code7307199060
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.71
MaterialSteel
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.550 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323108
