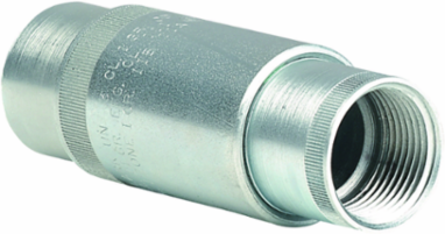

Killark UNFL1 Long Female Expansion Conduit Union 1/2 Inch Zinc Plated Steel
- MPN: UNFL1
- UPC: 783936010588
- PPN: HBL-UNFL1
- UNSPSC: 39131708
CAD
$119.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
UNF Series Fittings - Expansion Conduit Unions - Female - Long - Hub Size 1/2 In
Features
- Tapered threaded hubs (NPT) for rigid conduit and IMC
- Telescoping components allows conduit to be inserted between fixed threaded hubs
- Internal copper alloy grounding spring assures positive grounding
- Close tolerance of mating parts eliminates passage of flame
- Compact diameter allows use where conduit is closely spaced
- Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zone 1, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Glossy gray
- Height
- 1.19 in
- Length
- 4.34 in
- Type
- Long Female Expansion Conduit Union
- Weight
- 0.62 lb.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" ST EXP LONG UNION FEMALE
- Harmonization Code
- 7307199060
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.62
- Material
- Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- NAICS Code
- 3359323108
Dimensions4.34 in x 1.19 in x 1.19 in
ApplicationTo provide for slight expansion and contraction of conduit runs. To retrofit sections of conduit runs.
FinishZinc Plated
Hub Size1/2"
Special FeaturesTapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Width1.19 in
Finish TypeZinc Plated
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesUNF Series
BOX SIZE4.250x5.750x5.750 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936010588
Master Pack DescriptionEach
