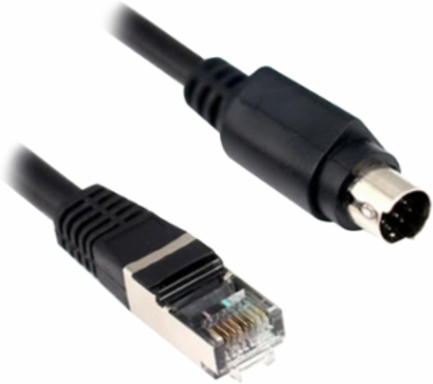

Schneider Electric XBTZ9780 Uni-Telway/Modbus Serial Link Cable 2.5 m with Mini DIN & RJ45 Connectors

MPN: XBTZ9780
PPN: SCH-XBTZ9780
UNSPSC: 43211715

$115.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Magelis XBTZ is a RS 485 cable for Modbus/Uni-TE serial link. It is equipped with one 8-way female mini-DIN connector at one end and one 25-way male SUB-D connector at the other end. it is 2.5 meters long. It enables direct connection between Magelis XBT terminals and PLCs.

Features

For XBT terminal and small touch screen panel
Supports Modbus and Uni-Telway communication port protocols
8-pin mini DIN male and RJ45 male connector for connection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Singapore, United States

Communications & Management Attributes

Communication Port Protocol	Modbus, Uni-Telway

Physical Attributes

Cable Length	2.5 m

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	1 male connector mini DIN, 8 pins, 1 male connector RJ45
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2504019EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2513
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Accessory / Separate Part Type	connecting cable
Nbr. Of Units In Pkg.	1
F Gas Free	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Silicone Free	No

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Accessory / Separate Part Destination	XBT terminal, small touch screen panel
Local Publishable Date	2026-07-21
Serviceability	No
Weee Applicability	Finished product
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	4
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Range Of Product	Harmony XBT
Sustainable Packaging	No
Accessory / Separate Part Category	connection accessories
Accessory / Separate Part Designation	Uni-Telway/Modbus serial link
Customs Code	8544422000
Halogen Free Status	Product contains halogen above thresholds
Warranty In Months	18

Environment Attributes Main

Product Compatibility	XBTGT1..., XBTRT511, XBTR400, XBTGK...., XBTRT500, XBTN400, XBTN200
Halogene Performance	Product contains halogen above thresholds
China Rohs Regulation	X
Silicon Free	No
Environmental Disclosure	ENVPEP2504019EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2504019EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2504019EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
F Gas Usage Performance	Only air and vacuum used for insulation / breaking, no F-gas including SF6
