Touchscreen HMI Panel, 5.7 Inch TFT LCD, 320 x 240 Pixels, 24V DC
Schneider Electric

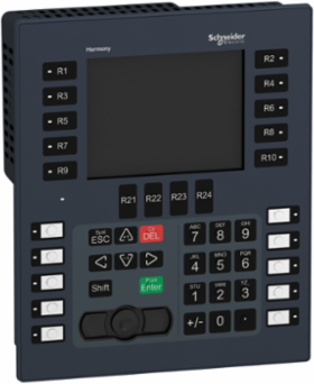

Schneider Electric HMIGK2310 Touchscreen HMI Panel, 5.7 Inch TFT LCD, 320 x 240 Pixels, 24V DC

  • MPN: HMIGK2310
  • PPN: SCH-HMIGK2310
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $4335.69

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 14 dynamic function keys, 10 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Mexico, Sweden
    Depth70 mm

    Physical Attributes

    Display Size
    5.7 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s)<= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s), USB 2.0 type A master Modicon M340 terminal port communication, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial linkremovable screw terminal block power supply, RJ45 Ethernet TCP/IP, USB 2.0 type mini B

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Character Font
    Korean, Taiwanese (traditional Chinese), ASCII (European characters), Japanese (ANK, Kanji), Chinese (simplified Chinese)
    Electromagnetic Compatibility
    resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3, resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4
    Memory Type
    up to 32 GB SD card RAM, up to 32 GB SDHC card RAM
    Carbon Footprint Of The Distribution Phase [A4]
    0.9718534286833398, 1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.04528127086247221, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    261 kg CO2 eq., 260.6342045499823
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Device Type
    HMI - Graphical display unit
    Traceability
    Yes
    Average Life Duration
    7 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2312019EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2513
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Advanced
    Brightness
    16 levels via touch panel
    Display Type
    backlit colour TFT LCD
    Fixing Mode
    by 10 spring clips
    Immunity To Microbreaks
    5 ms
    Local Signalling
    1 LED (green or orange) for normal operation or backlighting faulty
    Mounting Mode
    flush mounting
    Number Of Dynamic Function Keys Symb
    14 with LED
    Number Of Service Keys
    8
    Port Ethernet
    10BASE-T/100BASE-TX
    Processor Frequency
    333 MHz
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony GK
    Returnability
    Yes
    Software Designation
    Vijeo Designer
    Software Type
    configuration software
    Supply
    external source
    Sustainable Packaging
    No
    Touch Panel
    analogue
    Vibration Resistance
    1 gn 9-150 Hz)IEC 60068-2-63.5 mm 5-9 Hz)IEC 60068-2-6
    Display Color
    65536 colours
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide 10.4&quot; VGA -10.4&quot; Keypad-touchscreen panelduring 10 years and maximum use rate at 16.2W, based on below function:& 10 - 10.4&quot; Touchscreen panel& 10 - Function/Cursor keys& 10 - Mouse pointer& 10 - Alphanumeric keypad & 10 - USB 2.0 (type A,type mini B)& 10 - Serial interface (RS-485,RS-232C)& 10 - Ethernet interface & 10 - SD Card interface& 10 - Status LED& 10,in accordance with the relevant standards:& 10 - IEC 61000-6-2& 10 - IEC 61000-6-4& 10 - CSA C22.2 No 213& 10 - UL 61010-2-201& 10 - ANSI/ISA 12.12.01& 10 - IEC 61131-2
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Low voltage; 2020; Indonesia, ID
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2020; France, FR
    Recyclability Potential In %
    33
    Width Nominal
    220.3 mm
    Cut-out Dimensions
    209 (+/- 0.4) x 243 (+/- 0.4) mm
    F-gas Usage Performance
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable ProtocolsTelemecanique Modicon FIPWAY, Plus, TCP, Telemecanique Modicon ModbusMitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Telemecanique Modicon Uni-TE
    Memory Description512 KB SRAM back up of data lithium battery, 128 MB flash EPROM application memory
    Certificate AgencyUL Class 1 Division 2 T5, KC, CSA Class 1 Division 2 T5, CSA Class 1 Division 2 T4A, EAC, RCM, cULus, UL Class 1 Division 2 T4A, UKCA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.5921097381299676
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]133 kg CO2 eq., 132.8286842325432
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdADVANCED
    Product Kit IdentifierN
    Display Resolution320 x 240 pixels QVGA
    Enclosure MaterialPPT
    Front Materialaluminium alloy
    Inrush Current30 A
    MarkingCE
    Number Of Alphanumeric Keys12
    Number Of Pageslimited by internal memory capacity
    Number Of Static Function Keys10 with LED and labels
    Power Consumption In W7.7 W
    Processor NameARM926EJ-S
    Product Or Component Typetouchscreen panel with keypad
    Realtime Clockbuilt-in
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Software PackageVijeo Designer
    Software Versionv6.3.1
    Supply Voltage Limits19.2-28.8 V
    Total Lifecycle Carbon Footprint398 kg CO2 eq.
    Touch Sensitive Zone1024 x 1024
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2312019EN
    Pep Verification Date2025-09-15
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal265 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)4.135 kg
    Take-backNo
    Customs Code8537108000

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -20-60 °C, -20-60 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Carbon Footprint
    398.0721332202013
    Circularity Profile
    ENVEOLI2312019EN
    Eu Rohs Directive
    Compliant By Exemption
    Ip Degree Of Protection
    IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2312019EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Operating Altitude< 6561.68 ft (2000 m), < 6561.68 ft (2000 m)
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-55 °C
    Environmental DisclosureENVPEP2312019EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4X front panel (indoor use)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2025-09-15
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    touchscreen panel with keypad
    Range Of ProductHarmony GK

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412

    Batteries & Runtime Attributes

    Removable Battery
    USER_REPLACEABLEUser replaceable
