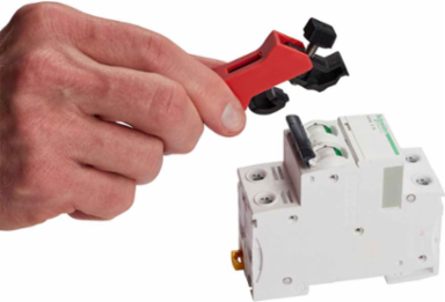

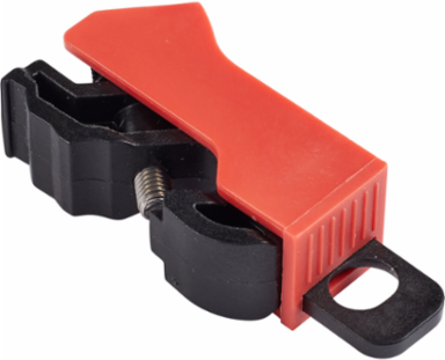

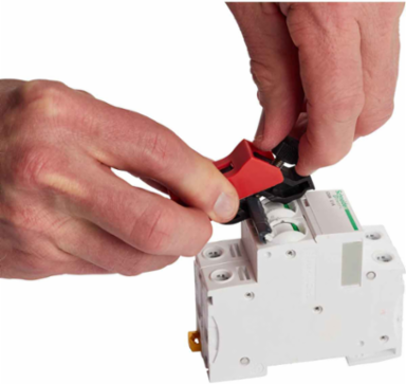

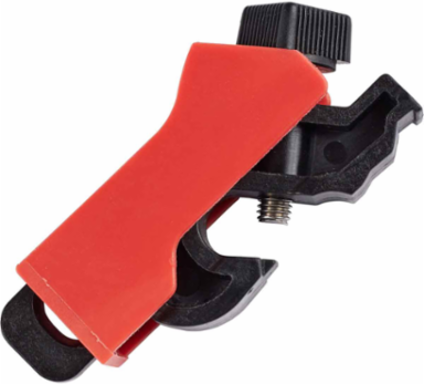

Brady 149514 Mini Circuit Breaker Lockout, 1/2 Inch Width, Fiberglass Reinforced Nylon, Red
- MPN: 149514
- UPC: 754473606183
- PPN: BRD-149514
- UNSPSC: 39121901
CAD
$21.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Miniature Circuit Breaker Lockouts are a safe and effective method for locking out miniature circuit breakers, commonly used in European and Asian equipment.
Features
- Easy installation with no tools required
- Low profile design allows panel door closure
- Available for single and multi-pole breakers
- Attach a Brady safety padlock to complete lockout
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 1 Piece(s) / Pack
- Brady Material Number
- LOTO-96
- Material
- Fiberglass Reinforced Nylon
- Depth (in/ft/yd)
- 2.5 in
- Dimensions
- 1.3 in H x 0.5 in W x 2.5 in D
- Height (in/ft/yd)
- 1.3 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Shackle Diameter (mm/cm/m)
- 7.11 mm
- Sign Size-General
- 1.3 in x 0.5 in
- Size - Width (mm)
- 12.70 mm
- Width (mm/cm/m)
- 12.7 mm
ColorRed
Maximum Number of Padlocks1
Risk TypeElectrical Risk
Adhesive (Y/N)No
Lockout MaterialFiberglass Reinforced Nylon
SAP B-NumberLOTO-96
Depth (mm/cm/m)63.50 mm
Dimensions (Metric)12.70 mm W x 33.02 mm H x 63.50 mm D
Height (mm/cm/m)33.02 mm
Maximum Shackle Diameter (in/ft/yd)0.28 in
Minimum Service Temperature °C-20 °C
Size - W x H x D (mm)12.70 x 33.02 x 63.50
Width (in/ft/yd)0.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
