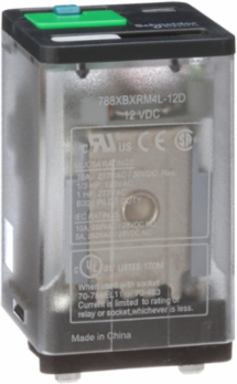

Schneider Electric 788XBXRM4L-12D General purpose relay, SE Relays, 788R, DPDT, 10A, 12 VDC, Quick terminal, clear cover with LED, lock push button
- MPN: 788XBXRM4L-12D
- PPN: SCH-788XBXRM4L-12D
CAD
$35.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 788R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 12VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 35.5 mm |
|---|
Complementary Attributes
| Maximum Switching Voltage | 300 V UL, 300 V CSA250 V IEC |
|---|---|
| Line Rated Current | 10 A |
| Rated Power In Hp | 0.33 HP 120 V AC1 HP 277 V AC |
| Control Circuit Voltage Limits | 0.8...1.1 Un DC |
|---|---|
| Minimum Switching Current | 10 mA 17 V DC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Signalling | LED Cover, flag |
| Certificate Agency | UL, CSA, CE, EAC |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Material | silver alloy, gold flashed |
| Control Type | lockable test button |
| Electrical Durability | 100000 cycles |
| Mounting Support | plug-in |
| Product Availability | Stock - Normally stocked in distribution facility |
| Resistance | 120 Ohm |
| Shock Resistance | 10 gn |
| Switch Function | DPDT |
| Height Nominal | 53 mm |
| [Ie] Rated Operational Current | 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC10 A at 277 V AC (on resistive load) conforming to UL10 A at 30 V DC (on resistive load) conforming to UL10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC |
| Connections - Terminals | blade terminal |
| Package Weight(Lbs) | 81.647 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Vibration Resistance | +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation3 gn 35-150 Hz in operation |
| Drop-out Voltage Threshold | >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2403024EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Average Coil Consumption | 1.4 W |
| Contacts Type And Composition | 2 NC + 2 NO |
| Dielectric Strength | 2500 V AC between coil and contact2000 V AC between poles1500 V AC between contacts |
| Mechanical Durability | 5000000 cycles |
| Operating Time | 20 ms |
| Product Or Component Type | plug-in electromechanical relay |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2403024EN |
| Width Nominal | 35 mm |
| [Ue] Rated Operational Voltage | 12 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410050 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI2403024EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2403024EN |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2403024EN |
| Ip Degree Of Protection | IP40 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | plug-in electromechanical relay |
|---|
