Schneider Electric 788XBXR69C-24D General purpose relay, SE Relays, 788R, DPDT, 10A, 24 VDC, Quick terminal, clear cover, magnetic blowout
Schneider Electric 788XBXR69C-24D General purpose relay, SE Relays, 788R, DPDT, 10A, 24 VDC, Quick terminal, clear cover, magnetic blowout
- MPN: 788XBXR69C-24D
- PPN: SCH-788XBXR69C-24D
- UNSPSC: 39122325
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$35.18/ EA
Description

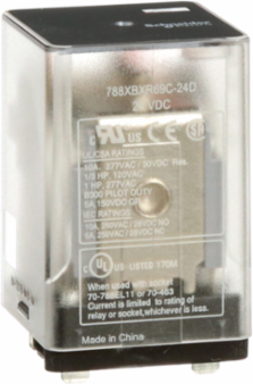

The SE Relays 788R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover and magnetic blowout option. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Specifications
Complementary Attributes
- Maximum Switching Voltage
- 300 V UL, 300 V CSA, 250 V IEC
- IE Rated Operational Current
- 10 A at 277 V AC (on resistive load) conforming to UL, 10 A at 30 V DC (on resistive load) conforming to UL, 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC, 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC, 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC, 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC
- Minimum Switching Current
- 10 mA 17 V DC
Rated Power In HP0.33 HP 120 V AC, 1 HP 277 V AC
Control Circuit Voltage Limits0.8...1.1 Un DC
UE Rated Operational Voltage24 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2500 V AC between coil and contact, 2000 V AC between poles, 1500 V AC between contacts
- Vibration Resistance
- +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, 3 gn 35-150 Hz in operation
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option Id
- STANDARD
- Contact Blow Out Type
- magnetic
- Mounting Support
- plug-in
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Connections Terminals
- blade terminal
- Pep Code
- ENVPEP2403024EN
- Product Manager
- ZHEN YIN
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
IE Rated Operational Current10 A at 277 V AC (on resistive load) conforming to UL, 10 A at 30 V DC (on resistive load) conforming to UL, 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC, 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC, 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC, 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status5 - INITIALIZED WITH DataSCAN OK (Migration)
Function OptionStandard
Local Signallingflag Cover
Package Weight Lbs83 g
Product Or Component Typeplug-in electromechanical relay
Sustainable PackagingYes
Relationship TypeCompatible relationship
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2403024EN
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Environmental DisclosureENVPEP2403024EN
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in electromechanical relay
