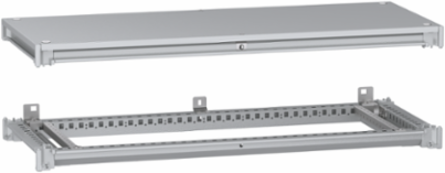

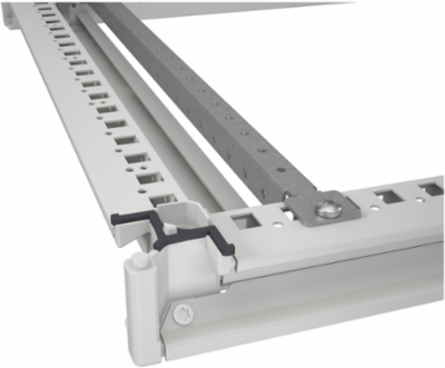

Schneider Electric NSYSFNC104 PanelSeT SFN Bottom and Top Frame, 1000 mm x 400 mm, Steel, Grey RAL 7035
- MPN: NSYSFNC104
- PPN: SCH-NSYSFNC104
CAD
$971.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This panel frame from Schneider Electric is expertly crafted from durable steel, designed to provide robust support for various applications. Measuring 1000 mm by 400 mm, it offers versatility in mounting and securing equipment efficiently. The sleek grey finish, with a standard RAL 7035 color, not only enhances aesthetics but also integrates seamlessly into industrial environments. Ideal for panel builders and installers alike, this frame ensures stability and reliability for a wide range of setups.
Documentation & Downloads
Specifications
Additional

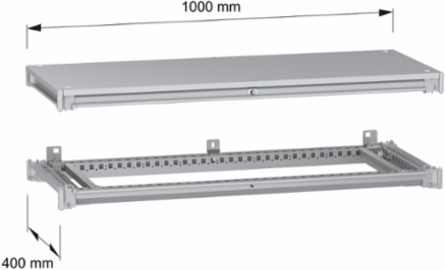

- Enclosure Nominal Dimensions
- W: 1000 mm D: 400 mm
- Width
- 1000 mm
- Material
- Steel
- Mounting Location
- Top and bottom of vertical uprights
- Fixing Mode
- By screws - each corner of enclosure
- Colour
- Grey RAL 7035
- China RoHS
- Pro-active declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- EU RoHS Directive
- Pro-active compliance (product out of EU RoHS legal scope)
Height110 mm
Depth400 mm
Surface FinishEpoxy-polyester powder

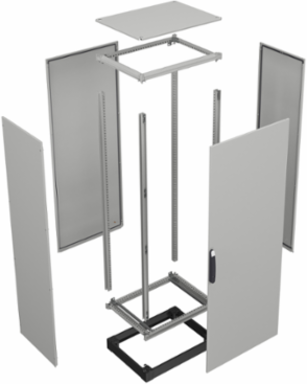

Device Composition1 bottom frame, 1 roof, 1 top frame
CompatibilityPanelSeT, PanelSeT SFN
Warranty18 months
RoHS Exemption InformationYes
REACH ComplianceFree of Substances of Very High Concern above threshold
Sustainable Offer StatusGreen Premium product
