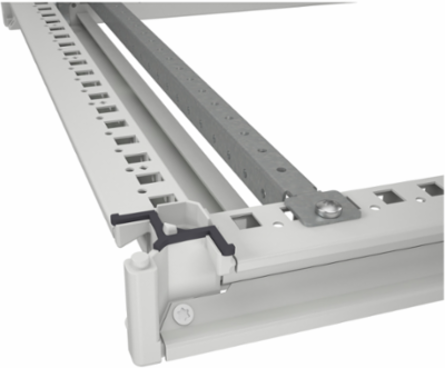

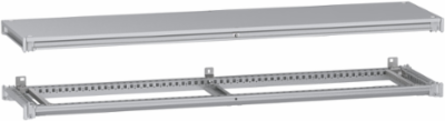

Schneider Electric NSYSFNC164 Bottom and top frame, PanelSeT SFN, for electrical enclosure W1600 D400mm, roof included
Schneider Electric NSYSFNC164 Bottom and top frame, PanelSeT SFN, for electrical enclosure W1600 D400mm, roof included
- MPN: NSYSFNC164
- PPN: SCH-NSYSFNC164
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1274.92/ EA
Description

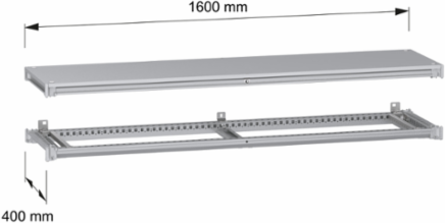

These steel frameworks are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of top and bottom frames and roof has a nominal width and depth of 1600 mm and 400 mm, respectively. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.
Features
- Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
- Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version.
- Sturdy, robust, and durable for maximum component protection.
- Ergonomic design for convenience & time-saving operations.
- Available in different sizes to fit your installation needs.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 bottom frame, 1 roof, 1 top frame
- Mounting Location
- top of vertical uprights, bottom of vertical uprights
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 51 kg CO2 eq., 51.41866468
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 58 kg CO2 eq., 58.38641842
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- enclosure accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP2301018EN
- Pep Verification Date
- 2023-07-31
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 2000 mm W: 1600 mm D: 400 mm, - H: 2000 mm W: 1600 mm D: 400 mm, - H: 2000 mm W: 1600 mm D: 400 mm, - H: 2000 mm W: 1600 mm D: 400 mm, - H: 2000 mm W: 1600 mm D: 400 mm, - H: 2000 mm W: 1600 mm D: 400 mm, - H: 2000 mm W: 1600 mm D: 400 mm, - H: 2000 mm W: 1600 mm D: 400 mm
Carbon Footprint Of The Distribution Phase A44.304315346, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A56.093878605, 6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Fixing Modeby screws - each corner of enclosure
Package Weight Lbs24.500 kg
Product Or Component Typeframework kit
RangePanelSeT
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint120 kg CO2 eq.
Medium DescBottom and top frame, PanelSeT SFN, for electrical enclosure W1600 D400mm, roof included
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 120.203277
- Environmental Disclosure
- ENVPEP2301018EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- framework kit
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 400 mm
