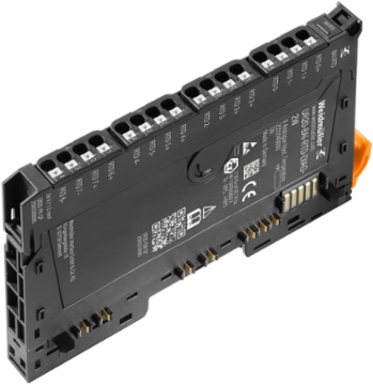

Weidmuller 2555940000 UR20-8AI-RTD-DIAG-2W
- MPN: 2555940000
- PPN: WDM-2555940000
CAD
$417.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Remote I/O module, IP20, Analog signals, Temperature, RTD
Documentation & Downloads
Specifications
General Data
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Test voltage | 500 V |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
Approvals
| Approvals | DEMKOATEX, IECEXULD |
|---|
Dimensions And Weights
| Width | 11.5 mm |
|---|---|
| Height | 120 mm |
| Depth | 76 mm |
| Mounting dimension - height | 128 mm |
| Width (inches) | 0.453 inch |
|---|---|
| Height (inches) | 4.724 inch |
| Depth (inches) | 2.992 inch |
| Net weight | 91 g |
Connection Data
| Type of connection | PUSH IN |
|---|---|
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
|---|---|
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, min. | 0.14 mm² |
Analogue Inputs
| Accuracy | 0.2% FSR / 0.3% FSR for Ni sensors / 0.6% FSR for Cu10 |
|---|---|
| Individual channel diagnosis | Yes |
| Number of analogue inputs | 8 |
| Reverse polarity protection | Yes |
| Temperature coefficient | ≤ 50 ppm/K |
| Conversion time | 80 ms |
|---|---|
| Module diagnosis | Yes |
| Resolution | 16 Bit |
| Sensor connection | 2-wire |
| Type | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni 200, Ni500, Ni1000, Cu10, 40Ω, 80Ω, 150Ω, 300Ω, 500Ω,1kΩ, 2kΩ,4kΩ |
Classifications
| ETIM 6.0 | EC001597 |
|---|---|
| eClass 9.0 | 27-24-26-02 |
| eClass 10.0 | 27-24-26-02 |
| ETIM 7.0 | EC001597 |
|---|---|
| eClass 9.1 | 27-24-26-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Field bus protocol | CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK |
|---|---|
| Interface | u-remote system bus |
| Transmission speed of system bus, max. | 48 Mbit |
| Galvanic isolation | 500 V DC between the current paths |
|---|---|
| Module type | Temperature module |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -20 °C ... +60 °C |
| Operating temperature, min. | -20 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C ... +85 °C |
Power Supply
| Current consumption from I | < 20 mA |
|---|---|
| Voltage supply | 24 V DC +20 %/ -15 %, via the system bus |
| Reverse polarity protection | Yes |
|---|
