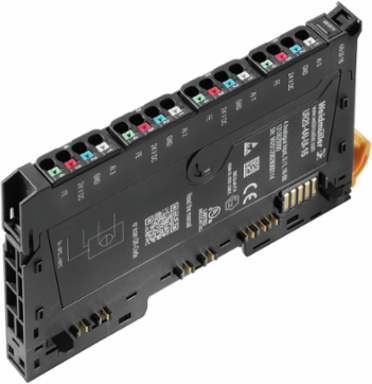

Weidmuller 1315620000 UR20-4AI-UI-16
- MPN: 1315620000
- PPN: WDM-1315620000
CAD
$425.27
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Remote I/O module, IP20, 4-channel, Analog signals, Input, Current/Voltage, 16 Bit
Documentation & Downloads
Specifications
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Surge voltage category
- II
- UL 94 flammability rating
- V-0
Air humidity (storage)10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (transport)1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Shock15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Test voltage500 V
Vibration resistance5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Approvals
- Approvals
- ABS, BURVER, CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, KOREANCERT, LLOYDSREG, RINA, WATEXIECEX
- UL File Number Search
- E141197
ROHSConform
Dimensions And Weights
- Width
- 11.5 mm
- Height
- 120 mm
- Depth
- 76 mm
- Mounting dimension - height
- 128 mm
Width (inches)0.453 inch
Height (inches)4.724 inch
Depth (inches)2.992 inch
Net weight89 g
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max. (AWG)
- AWG 16
- Wire cross-section, solid, min. (AWG)
- AWG 26
Wire connection cross section, finely stranded, max.1.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 16
Wire cross-section, solid, max.1.5 mm²
Wire cross-section, solid, min.0.14 mm²
Analogue Inputs
- Accuracy
- 0.1% FSR
- Individual channel diagnosis
- No
- Internal resistance U
- 100 kΩ
- Number of analogue inputs
- 4
- Reverse polarity protection
- Yes
- Short-circuit-proof
- Yes
Conversion time1 ms
Internal resistance I41.2 Ω
Module diagnosisYes
Resolution16 Bit

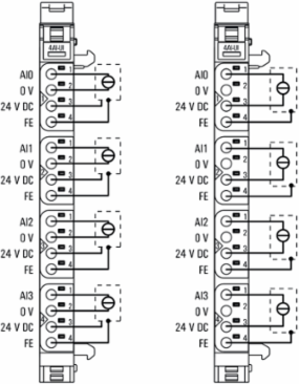

Sensor connection2-wire, 3-wire, 3-wire + FE
Type1. U (0…5 V, 0…10 V, 1…5 V, 2…10 V, ±10 V), 2. I (0–20 mA or 4–20 mA), Adjustable input for current or voltage
Classifications
- ETIM 6.0
- EC001597
- eClass 9.0
- 27-24-26-02
- eClass 10.0
- 27-24-26-02
ETIM 7.0EC001597
eClass 9.127-24-26-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1

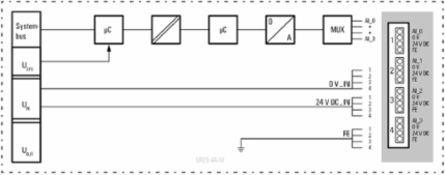

System Data
- Configuration interface
- Micro USB 2.0
- Field bus protocol
- CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK
- Interface
- u-remote system bus
- Parameter data
- 14 Byte
- Transmission speed of system bus, max.
- 48 Mbit
Diagnostic data1 Bit
Galvanic isolationDC 500 V between current paths
Module typeAnalogue input module
Process data8 Byte
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -20 °C ... +60 °C
Operating temperature, min.-20 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C ... +85 °C
Power Supply
- Current consumption from I
- 25 mA + sensor feed
- Voltage supply
- 24 V DC +20 %/ -15 %, via the system bus
Reverse polarity protectionYes
