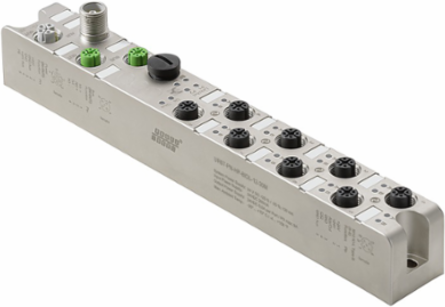

Weidmuller 2426250000 UR67-PN-HP-8IOL-12-30M
- MPN: 2426250000
- PPN: WDM-2426250000
CAD
$943.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Automation Products - u-remote IP67, Sensor-actuator active distributor, PROFINET V2.3
Documentation & Downloads
Specifications
General Data
| Housing main material | Zinc diecast |
|---|---|
| UL 94 flammability rating | UL 94 |
| Protection degree | IP67 |
|---|
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Digital Inputs
| Input current, high | Type 1 in acc. with IEC 61131-2 |
|---|---|
| Overload protection | Yes |
| Input current, low | Type 1 in acc. with IEC 61131-2 |
|---|---|
| Short-circuit protection | Yes |
Dimensions And Weights
| Length | 225 mm |
|---|---|
| Width | 30 mm |
| Height | 30 mm |
| Net weight | 480 g |
| Length (inches) | 8.858 inch |
|---|---|
| Width (inches) | 1.181 inch |
| Height (inches) | 1.181 inch |
Digital Outputs
| Max. total current outputs | 9 A |
|---|---|
| Output voltage, low | 1 V |
| Short-circuit protection | Yes |
| Output voltage, high | max. 2 V |
|---|---|
| Overload protection | Yes |
| max. current-carrying capacity per output signal | 0.5 A, 2 A |
Connections
| Fieldbus (BUS-IN) | 1x M12 female 4-pole, D-coded |
|---|---|
| I/O connections | 8 x M12 socket 5-pole, A-coded |
| Supply voltage (AUX-OUT) | 1x M12 socket 5-pole, L-coded |
| Fieldbus (BUS-OUT) | 1x M12 female 4-pole, D-coded |
|---|---|
| Supply voltage (AUX-IN) | 1x M12 plug 5-pole, L-coded |
Supply Voltage
| Limits | 18 V DC ... 30 V DC |
|---|---|
| Power consumption of module electronics | 160 mA typical |
| Operating voltage | 24 V |
|---|---|
| Reverse polarity protection | Yes |
Classifications
| ETIM 6.0 | EC001597 |
|---|---|
| eClass 9.0 | 27-24-26-02 |
| eClass 10.0 | 27-24-26-02 |
| ETIM 7.0 | EC001597 |
|---|---|
| eClass 9.1 | 27-24-26-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Galvanic isolation | 2000 V DC |
|---|
| IO link standard | IO-Link v.1.1, IEC 61131-9 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|
| Operating temperature, min. | -20 °C |
|---|
