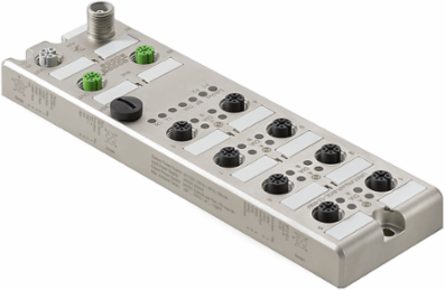

Weidmuller 2426260000 UR67-PN-HP-8IOL-12-60M
- MPN: 2426260000
- PPN: WDM-2426260000
CAD
$923.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Automation Products - u-remote IP67, Sensor-actuator active distributor, PROFINET V2.3
Documentation & Downloads
Specifications
General Data
- Housing main material
- Zinc diecast
- UL 94 flammability rating
- UL 94
Protection degreeIP67
Approvals
- Approvals
- CE, CULUS
- UL File Number Search
- E141197
ROHSConform
Digital Inputs
- Input current, high
- Type 1 in acc. with IEC 61131-2
- Overload protection
- Yes
Input current, lowType 1 in acc. with IEC 61131-2
Short-circuit protectionYes
Dimensions And Weights
- Length
- 200 mm
- Width
- 59.6 mm
- Height
- 17.6 mm
- Net weight
- 500 g
Length (inches)7.874 inch
Width (inches)2.346 inch
Height (inches)0.693 inch
Digital Outputs
- Max. total current outputs
- 9 A
- Output voltage, low
- 1 V
- Short-circuit protection
- Yes
Output voltage, highmax. 2 V
Overload protectionYes
max. current-carrying capacity per output signal0.5 A, 2 A
Connections
- Fieldbus (BUS-IN)
- 1x M12 female 4-pole, D-coded
- I/O connections
- 8 x M12 socket 5-pole, A-coded
- Supply voltage (AUX-OUT)
- 1x M12 socket 5-pole, L-coded
Fieldbus (BUS-OUT)1x M12 female 4-pole, D-coded
Supply voltage (AUX-IN)1x M12 plug 5-pole, L-coded
Supply Voltage
- Limits
- 18 V DC ... 30 V DC
- Power consumption of module electronics
- 160 mA typical
Operating voltage24 V
Reverse polarity protectionYes
Classifications
- ETIM 6.0
- EC001597
- eClass 9.0
- 27-24-26-02
- eClass 10.0
- 27-24-26-02
ETIM 7.0EC001597
eClass 9.127-24-26-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Data
- Galvanic isolation
- 2000 V DC
IO link standardIO-Link v.1.1, IEC 61131-9
Temperatures
- Operating temperature, max.
- 70 °C
Operating temperature, min.-20 °C
