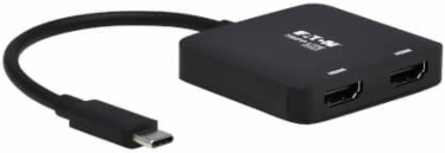

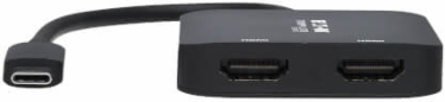

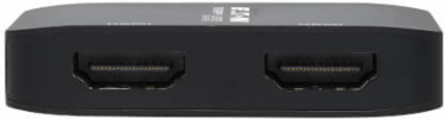

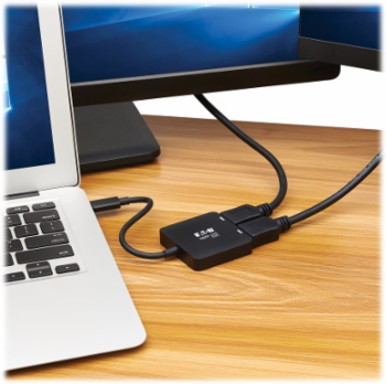

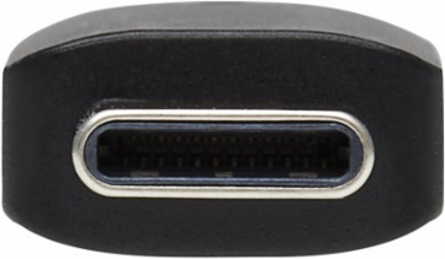

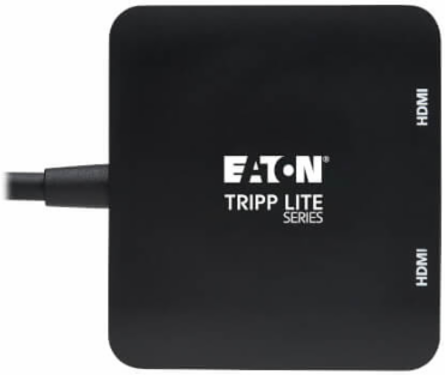

Tripp Lite U4442HMST4K6 USB-C Adapter, Dual Display, 4K 60Hz HDMI, HDR, 4:4:4, HDCP 2.2, DP 1.4 Alt Mode, Black
- MPN: U4442HMST4K6
- UPC: 037332263773
- PPN: TRP-U444-2H-MST4K6
CAD
$99.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB-C Adapter, Dual Display - 4K 60 Hz HDMI, HDR, 4:4:4, HDCP 2.2, DP 1.4 Alt Mode, Black
Documentation & Downloads
Specifications
Dimensions
| Host Connector | USB C (MALE) |
|---|---|
| Video Output | HDMI (FEMALE) |
| Audio Ports | (2) HDMI (FEMALE) |
| Audio Output | HDMI |
| Side A - Connector 1 | USB C (MALE) |
| Cable Outer Diameter | 4.3mm |
| Unit Dimensions | 0.450 x 2.170 x 1.970 |
| Video Input | USB C (MALE) |
|---|---|
| Video Ports | (2) HDMI (FEMALE) |
| Audio Input | USB-C |
| Built-In Cable Length | 0.394 |
| Side B - Connector 1 | (2) HDMI (FEMALE) |
| Wire Gauge | 24 + 32 + 34 |
| Unit Weight | 0.09 |
Material
| Color | Black |
|---|---|
| Connector Plating | Nickel |
| Material of Construction | TPE |
|---|
Compliance
| Certifications | EN 55032; EN 55035; IEC/EN 63000 |
|---|
| Compliance | CE (Europe); FCC (USA); REACH; RoHS; UKCA; WEEE |
|---|
Reference
| Device Compatibility | Chromebook; Laptop; Monitor/HDTV; Projector |
|---|---|
| Warranty | 3-year limited warranty |
| Product Type | USB-C to HDMI Multi-Port Adapter |
|---|
Performance
| Technology | HDMI; USB 3.x |
|---|---|
| Video Ports Details | HDMI 2.0; HDCP 2.2; DisplayPort 1.4 |
| Max Supported Video Resolution | 3840 x 2160 (4K) @ 60Hz |
| Max Supported Color Depth | 48-bit Deep Color |
| Audio Specification | 7.1 Channel Surround Sound |
| USB Specification | USB 3.2 Gen 2 (Up to 10 Gbps) |
| HDCP Specification | 2.2 |
| Storage Temperature Range | 14° to 158°F (-10° to 70°C) |
| Storage Humidity Range | 5% to 90% RH, Non Condensing |
| Number of Monitors Supported | 2 |
|---|---|
| Resolutions Supported | DP 1.4 host: dual output 4K (3840 x 2160) @ 60 Hz max; DP 1.2a host: dual output 4K (3840 x 2160) @ 30 Hz max |
| Extended Mode | Yes |
| Chroma Sub Sampling | 4:4:0; 4:4:4 |
| Battery Charging | No |
| Displayport Specification | 1.4 |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10% to 85% RH, Non Condensing |
