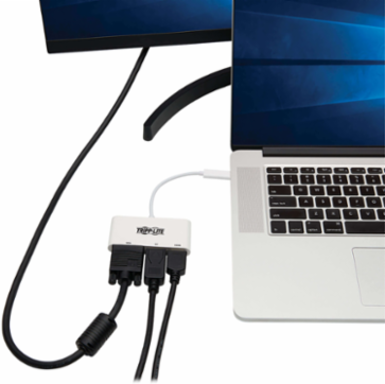

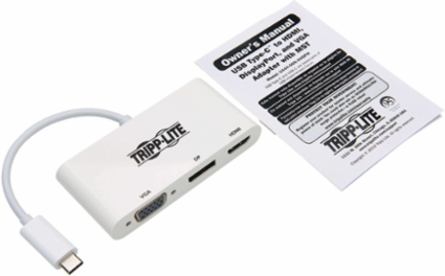

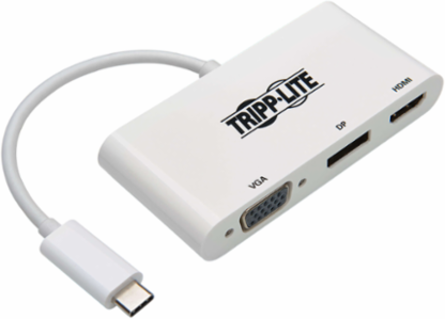

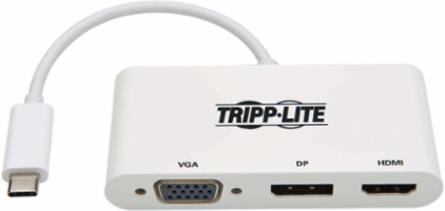

Tripp Lite U444-06N-HVDPW USB-C Triple Display Adapter, 4K 60Hz HDMI/DisplayPort/VGA, White
- MPN: U444-06N-HVDPW
- UPC: 037332237323
- PPN: TRP-U444-06N-HVDPW
CAD
$88.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Triple Display Adapter, 4K 60Hz HDMI/DisplayPort/VGA, White
Features
- Transmits video signals from laptops and tablets supporting USB-C DisplayPort Alt Mode
- Connects DisplayPort/HDMI/VGA with no need to carry separate adapters for each display
- DisplayPort/HDMI ports deliver UHD quality at resolutions up to 3840 x 2160 (4K x 2K)
- VGA port delivers HD quality at video resolutions up to 1920 x 1200 (including 1080p)
- Supports DisplayPort MST mode for playing video on multiple displays at once
- 3-year limited warranty
- USB-C All-in-One Adapter Connects DisplayPort/HDMI/VGA Displays to Your USB-C Device
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K HDMI and DisplayPort Video and Digital Audio
- You Can Keep Using Your Current VGA Monitor and Save Money
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | HDMI: 3840 x 2160 (4K X 2K) @ 30 Hz; DisplayPort: 3840 x 2160 (4K X 2K) @ 60 Hz; VGA: 1920 x 1200 (1080P) @ 60 HZ |
|---|---|
| HDMI Specification | 1.4 |
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| USB Power Delivery (PD) Charging Support | No |
| Displayport Specification | 1.2 |
|---|---|
| HDCP Specification | 1.4; 2.2 |
| Driver Required | No |
| Technology | DisplayPort; HDMI; USB; USB 3.1 (Gen 1); VGA/SVGA |
Certifications
| Certifications | Tested to RoHS, REACH, FCC, CE |
|---|
Connections
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Side B - Connector 2 | HD15 (FEMALE) |
| Connector Plating | Nickel |
| Side B - Connector 1 | HDMI (FEMALE) |
|---|---|
| Side B - Connector 3 | DISPLAYPORT (FEMALE) |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC, ABS |
| Unit Weight (lbs.) | 0.095 |
| Color | White |
|---|---|
| Unit Dimensions (hwd / in.) | .55 x 3.46 x 1.65 |
User Interface, Alerts & Controls
| LED Indicators | N/A |
|---|
Input
| Built-In Cable Length (in.) | 4.3 |
|---|
| Bus Powered | Yes |
|---|
Environmental
| Operating Temperature Range | 32 ~ 113F (0 ~ 45C) |
|---|---|
| Operating Humidity Range | 10% ~ 85% RH |
| Storage Temperature Range | 14 ~ 158F (-10 ~ 70C) |
|---|---|
| Storage Humidity Range | 5% ~ 90% RH |
Overview
| UPC Code | 037332237323 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
