Tripp Lite U457-2M2-SATAG2 USB-C Dual M.2 SATA SSD/HDD Enclosure Adapter, 10 Gbps, Aluminum
- MPN: U457-2M2-SATAG2
- UPC: 037332237224
- PPN: TRP-U457-2M2-SATAG2
CAD
$67.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Dual M.2 SATA SSD/HDD Enclosure Adapter, 10 Gbps, Aluminum
Features
- Connects dual 2230, 2242, 2260 and 2280 M.2 SATA SSD drives to your computer
- Supports 2.5 in. SATA III (6 Gbps), II (3 Gbps) and I (1.5 Gbps) drives up to 2 TB
- Supports USB 3.1 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
- Works up to 70% faster when connected to UASP host controller
- Vented aluminum housing keeps drive cool to prevent data corruption
- 3-year limited warranty
- Connect 2 High-Performance SATA Drives to Your Computer’s USB-C or Thunderbolt 3 Port
- Transfers Data at Lightning-Fast USB 3.1 Gen 2 Speeds with UASP and RAID Support
- Reversible USB-C Connector Attaches in Either Direction
- Just Plug and Play for Immediate Use Right Out of the Package
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 3.1 Gen 2 (up to 10 Gbps) |
|---|---|
| USB Power Delivery (PD) Charging Support | No |
| Driver Required | No |
|---|---|
| Technology | SATA/eSATA; USB; USB 3.1 (Gen 2) |
Certifications
| Certifications | Tested to RoHS, REACH, CE and FCC |
|---|
Connections
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Gold |
| Side B - Connector 1 | M.2 NGFF SATA (B-Key) |
|---|
Physical
| Color | Black |
|---|---|
| Unit Dimensions (hwd / in.) | 0.79 x 3.09 x 4.92 |
| Unit Weight (lbs.) | 0.6393 |
| Material of Construction | Aluminum, Plastic |
|---|---|
| Unit Packaging Type | Box |
User Interface, Alerts & Controls

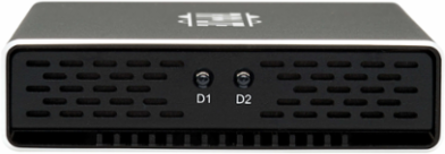

| LED Indicators | LED 1 = HDD 1 Data (Data Transmitting = Blue, Error Transmitting Data = Red); LED 2 = HDD 2 Data (Data Transmitting = Blue, Error Transmitting Data = Red) |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 2A |
| Bus Powered | Yes |
| External Power Supply Input Specs (V / Hz / A) | 100-240 / 50/60 Hz / 0.4A |
|---|---|
| External Power Supply DC Barrel Connector Specs | OD: 3.5 x 1.3 x 8mm, Positive Pin, Negative Sleeve |
Environmental
| Operating Temperature Range | 50 ~ 122F (0 ~ 50C) |
|---|---|
| Relative Humidity | 10 ~ 80% RH |
| Storage Temperature Range | 32 ~ 149F (0 ~ 65C) |
|---|
Overview
| UPC Code | 037332237224 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
