Telemecanique Sensors XZCRPC USB M12 5 poles adapter for safety light curtain integrated muting programming
- MPN: XZCRPC
- PPN: TES-XZCRPC
- UNSPSC: 39122221
CAD
$103.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

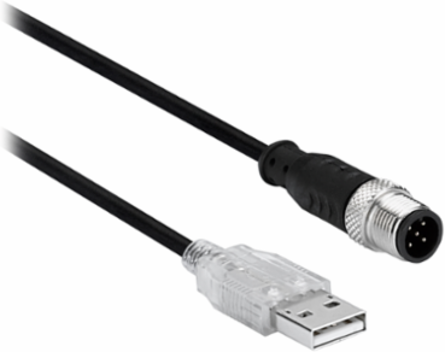

USB M12 5 poles adapter for safety light curtain integrated muting programming
Documentation & Downloads
Specifications
Key Specifications
| Accessory / Separate Part Category | cabling accessory |
|---|
| Accessory / Separate Part Type | jumper cable |
|---|
Complementary
| Jumper Cable End 2 | USB Type A 4 pins straight |
|---|---|
| Wire Insulation Material | PVC |
| Maximum Resistance Across Terminals | 10 mOhm |
| Cable Length | 2 m |
| Cable Composition | 4 x 0.25 mm² |
| Net Weight | 0.08 kg |
| Cable Outer Diameter | 4.2 mm |
|---|---|
| [Ue] Rated Operational Voltage | 30 V DC |
| Insulation Resistance | >= 100 MOhm |
| [In] Rated Current | 1.5 A |
| Jumper Cable End 1 | M12 male 5 pins straight screw-on |
Environment
| Ambient Air Temperature For Operation | -30-80 °C static |
|---|
| Ambient Air Temperature For Storage | -30-80 °C |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI1406015EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1406015EN |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
