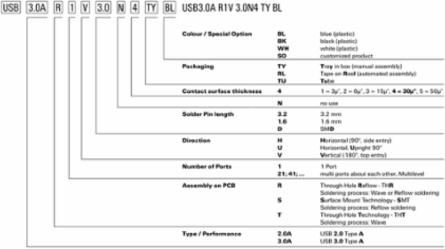

Weidmuller 2563710000 USB2.0A T1H 2.5N4 TY BK
- MPN: 2563710000
- PPN: WDM-2563710000
CAD
$0.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

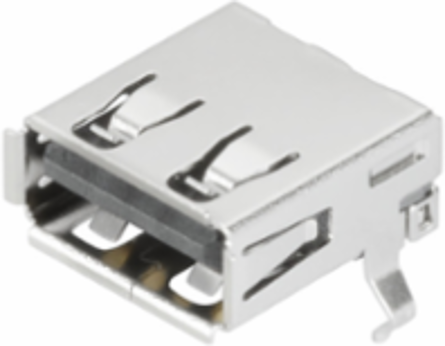

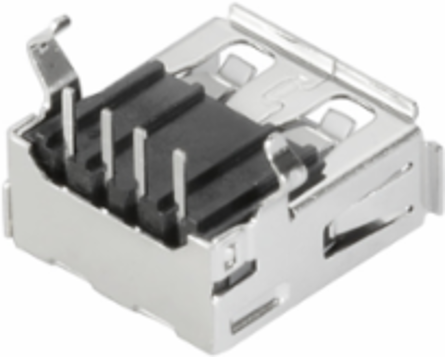

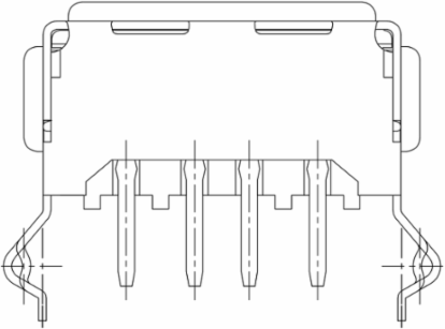

PCB plug-in connector, USB jacks, THT solder connection, 2.00 mm, Number of poles: 4, 90°, Solder pin length (l): 2.84 mm, Gold over nickel, black, Tray (manual assembly)
Documentation & Downloads
Specifications
Electrical Properties
- Dielectric strength, contact / contact
- 500 V AC
- Rated current
- 1.5 A at 250 V AC
Insulation strength≥ 1000 MΩ
Rated voltage30 V
Approvals
- Approvals
- UL
- UL File Number Search
- E471884
ROHSConform

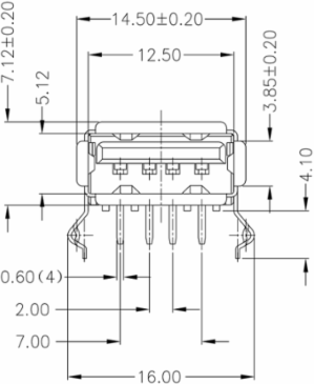

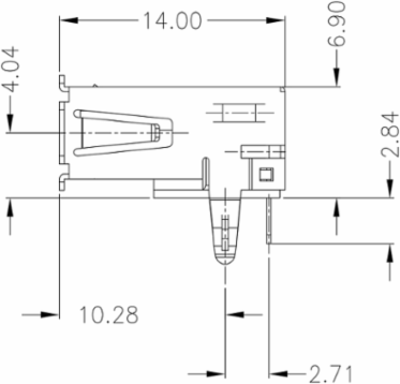

Dimensions And Weights
- Width
- 14.5 mm
- Height
- 9.74 mm
- Height of lowest version
- 6.9 mm
- Depth (inches)
- 0.551 inch
Width (inches)0.571 inch
Height (inches)0.383 inch
Depth14 mm
Net weight0.001 g
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 500
- UL 94 flammability rating
- V-0
- Contact surface
- Gold over nickel
- Storage temperature, min.
- -20 °C
- Operating temperature, min.
- -20 °C
Colourblack
Insulating material groupII
Insulation strength≥ 1000 MΩ
Contact base materialPhosphorus bronze
Layer structure of plug contact30-80 µ" Ni / 30- µ" Au
Storage temperature, max.60 °C
Operating temperature, max.60 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Packing
- Packaging
- Tray (manual assembly)
- VPE width
- 0 m
VPE length0 m
VPE height0 m
System Specifications
- LED
- No
- Number of poles
- 4
- Outgoing elbow
- 90°
- Plugging cycles
- ≥ 1500
- Product family
- OMNIMATE Data - USB jacks
- Pulling force/pole, max.
- 10 N
- Shield tabs
- none
- Shielding material
- Brass
- Transmission rate
- 480 Mbps

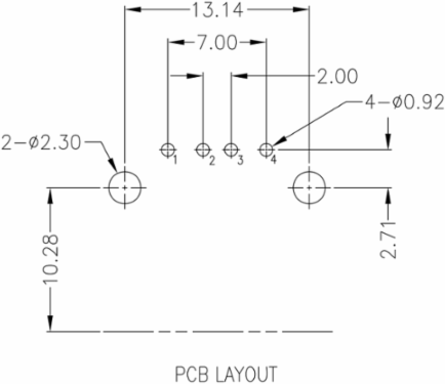

Mounting onto the PCBTHT solder connection
Number of solder pins per pole1
Pitch in mm (P)2 mm
Plugging force/pole, max.35 N
Protection degreeIP20
Shield surfacenickel-plated
ShieldingYes
Solder pin length (l)2.84 mm
Type of connectionSocket connector
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 60 °C
Operating temperature, min.-20 °C
Storage temperature, min.-20 °C
