Weidmuller 1985910000 USB2.0A T1V 2.5N4 TY BK
- MPN: 1985910000
- PPN: WDM-1985910000
CAD
$0.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

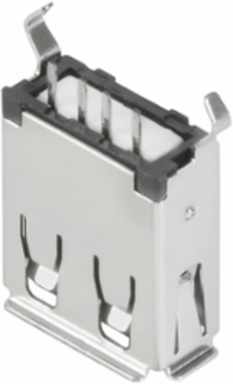

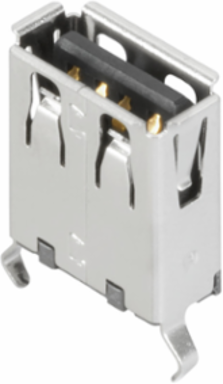

PCB plug-in connector, USB jacks, THT solder connection, 2.00 mm, Number of poles: 4, 180°, Solder pin length (l): 2.9 mm, Gold over nickel, black, Tray (manual assembly)
Documentation & Downloads
Specifications
Electrical Properties
| Dielectric strength, contact / contact | 500 V AC |
|---|---|
| Rated current | 1.5 A at 250 V AC |
| Insulation strength | ≥ 1000 MΩ |
|---|---|
| Rated voltage | 30 V |
Approvals
| Approvals | UL |
|---|---|
| UL File Number Search | E471884 |
| ROHS | Conform |
|---|

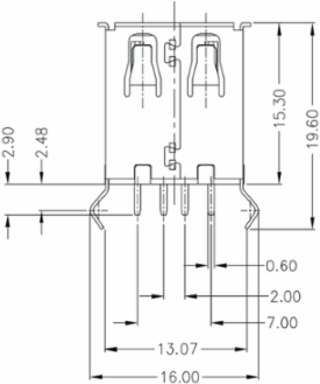

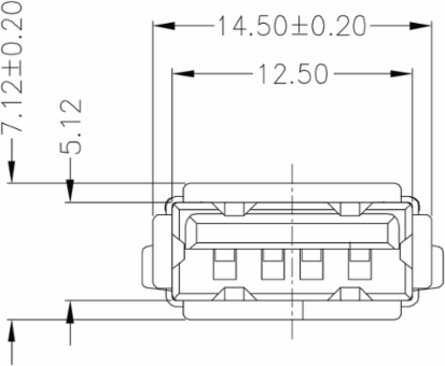

Dimensions And Weights
| Width | 14.5 mm |
|---|---|
| Height | 19.6 mm |
| Height of lowest version | 15.3 mm |
| Depth (inches) | 0.28 inch |
| Width (inches) | 0.571 inch |
|---|---|
| Height (inches) | 0.772 inch |
| Depth | 7.12 mm |
| Net weight | 2.84 g |
Material Data
| Insulating material | PBT |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 500 |
| UL 94 flammability rating | V-0 |
| Contact surface | Gold over nickel |
| Storage temperature, min. | -40 °C |
| Operating temperature, min. | -40 °C |
| Colour | black |
|---|---|
| Insulating material group | II |
| Insulation strength | ≥ 1000 MΩ |
| Contact base material | Phosphorus bronze |
| Layer structure of plug contact | 30-80 µ" Ni / 30- µ" Au |
| Storage temperature, max. | 60 °C |
| Operating temperature, max. | 60 °C |
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-90 |
| eClass 10.0 | 27-44-03-90 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-44-09-90 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Packing
| Packaging | Tray (manual assembly) |
|---|---|
| VPE width | 0 m |
| VPE length | 0 m |
|---|---|
| VPE height | 0 m |
System Specifications
| LED | No |
|---|---|
| Number of poles | 4 |
| Outgoing elbow | 180° |
| Plugging cycles | ≥ 1500 |
| Protection degree | IP20 |
| Shield tabs | none |
| Shielding material | Brass |
| Transmission rate | 480 Mbps |

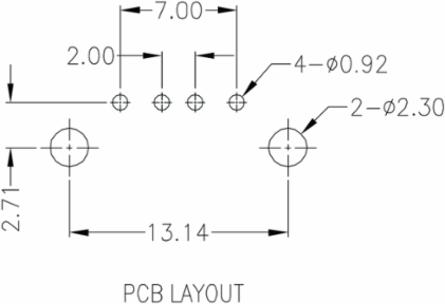

| Mounting onto the PCB | THT solder connection |
|---|---|
| Number of solder pins per pole | 1 |
| Pitch in mm (P) | 2 mm |
| Product family | OMNIMATE Data - USB jacks |
| Shield surface | nickel-plated |
| Shielding | Yes |
| Solder pin length (l) | 2.9 mm |
| Type of connection | Socket connector |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
