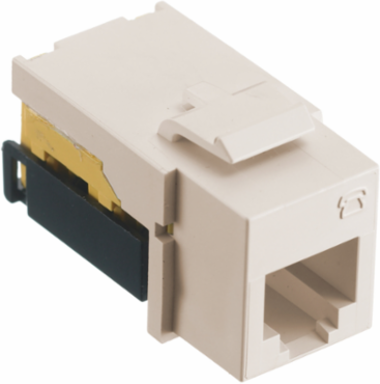

Bryant NSJULA netSELECT™ RJ25 USOC Telephone Jack, Quick-Lace Termination, 0.86 x 0.67 x 1.29 Inch
Bryant NSJULA netSELECT™ RJ25 USOC Telephone Jack, Quick-Lace Termination, 0.86 x 0.67 x 1.29 Inch
- MPN: NSJULA
- UPC: 883778504198
- PPN: HBL-NSJULA
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$7.26/ EA
Description
netSELECT™ RJ25 USOC modular jacks support various telephony applications. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- RJ25 USOC Telephone Jack
- Quick-Lace Termination
Specifications
Specifications
- Contact Point Material
- Beryllium Copper with Gold Over Plating
- Width
- 3.500 in
- Industry Standard(s)
- 6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1869
- Performance
- USOC
- Standards - RoHS Compliance Status
- CM
- Color
- Office White / Light Almond
- Contact Resistance
- Per TIA
- Insertion Loss
- Per TIA
- Special Features
- Quick-Lace Termination
- Sub Brand
- netSELECT™
- Type
- Modular Jack
- Connectivity
- RJ45 Jack to IDC Punch Down
- Display Size
- Standard Sized Product
- Operating Cycles
- 750+ Plug
- Description - Invoice
- JACK, NSJ,6POS,USOC,LA
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 3.000 lb.
- Lowest Level UOM
- Each
Country of OriginPR
Each - Width3.500 in
Number of Pieces in Package1
Size0.86 (22) x 0.67 (?17) x 1.29 (?33)
ApplicationTelephone
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
MountingSnap-fit
Standard6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1869
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberNSJUOW
Material - Mounting HardwareScrew Mounting
SeriesnetSELECT™ Series
BOX SIZE6.100x10.700x5.600 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack883778504198
Case - Total Units300 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
