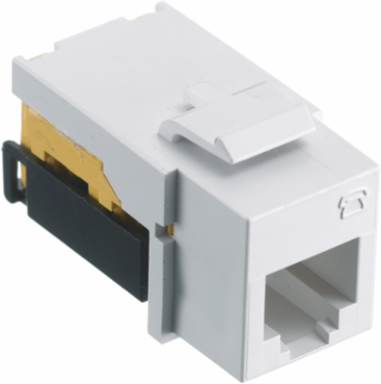

Bryant NSJUW netSELECT™ RJ25 USOC Modular Jack 0.86 x 0.67 x 1.29 Inch, Quick-Lace Termination
- MPN: NSJUW
- UPC: 883778500022
- PPN: HBL-NSJUW
- UNSPSC: 39121444
CAD
$7.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
netSELECT™ RJ25 USOC modular jacks support various telephony applications. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- RJ25 USOC Telephone Jack
- Quick-Lace Termination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 0.670 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Application
- Telephone
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Mounting
- Snap-fit
- Standard
- 6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1872
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.7 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 9.400 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 39.600 in
- Pallet Weight
- 300.800 lb.
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1872
PerformanceUSOC
Standards - RoHS Compliance StatusCM
ColorWhite
Contact ResistancePer TIA
Insertion LossPer TIA
Special FeaturesQuick-Lace Termination
Sub BrandnetSELECT™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles750+ Plug
Description - InvoiceJACK, NSJ,6POS,USOC,WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesnetSELECT™ Series
BOX SIZE4.600x6.400x5.500 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack883778500022
Case - Total Units300 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778500021
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
