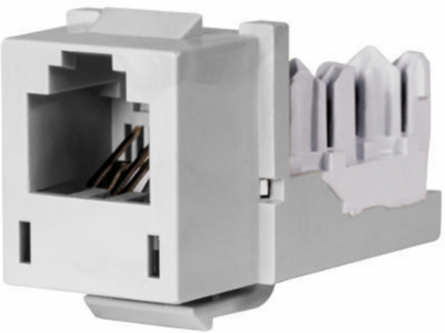

Bryant HXJUW XCELERATOR™ RJ25 USOC Modular Jack - Size 0.86 x 0.67 x 1.29 Inch, Thermoplastic Construction
- MPN: HXJUW
- UPC: 662620824673
- PPN: HBL-HXJUW
- UNSPSC: 39121444
CAD
$7.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
XCELERATOR™ RJ25 USOC modular jacks support various telephony applications. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- RJ-25 USOC (RJ-25) Jack
- Quick-Lace Towers Accelerate Termination
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 3.140 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- White
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- 6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1864
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- BXJUW
- Material - Mounting Hardware
- Keystone
- Series
- XCELERATOR™ Series
- BOX SIZE
- 4.500x6.300x5.600 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620824673
- Case - Total Units
- 650 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70662620824672
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1864
PerformanceUSOC
ApplicationTelephone
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles2000 Plug
Description - InvoiceJACK, HXJ,6POS,USOC,WH
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.65 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Case Weight18.700 lb.
Lowest Level UOMEach
Pallet Height36.600 in
Pallet Weight224.400 lb.
Certifications
- EU RoHS Indicator
- Yes
