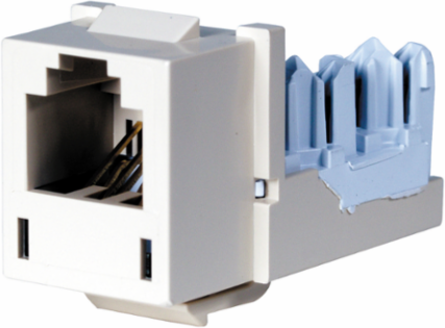

Bryant HXJUOW XCELERATOR Modular Jack, 6-Position USOC, 0.86 x 0.67 x 1.29 Inch
Bryant HXJUOW XCELERATOR Modular Jack, 6-Position USOC, 0.86 x 0.67 x 1.29 Inch
- MPN: HXJUOW
- UPC: 662620824710
- PPN: HBL-HXJUOW
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$7.54/ EA
Description
Telephone/Data, Jack, XCELERATOR, USOC 6-Position
Features
- RJ-25 USOC (RJ-25) Jack
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Bulk Packaging Reduces Excess Waste on the Job
- Quick-Lace Termination
Specifications
Specifications
- Country of Origin
- United States
- Width
- 3.000 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 (17) x 1.29 (33)
- Color
- Office White / Light Almond
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- 6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1864
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HXJUOW25
- Material - Mounting Hardware
- Keystone
- Series
- XCELERATOR™ Series
- BOX SIZE
- 4.400x6.300x5.600 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620824710
- Case - Total Units
- 650 EA
- Each - Pack Description
- Each
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1864
PerformanceUSOC
ApplicationTelephone
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles2000 Plug
Description - InvoiceJACK, HXJ,6POS,USOC,OW
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.6 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Case Weight19.250 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
