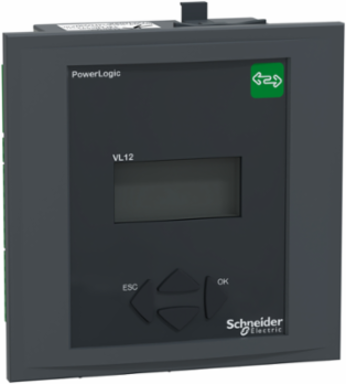

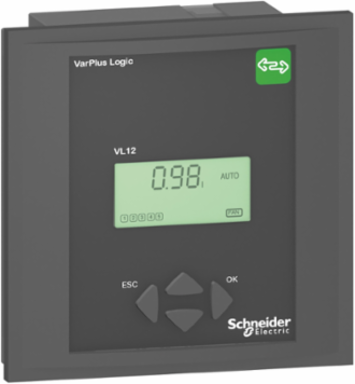

Schneider Electric VPL12N Power Factor controller, PowerLogic PFC Controller, VPL 12
- MPN: VPL12N
- PPN: SCH-VPL12N
CAD
$3787.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VarPlus logic is a simple and efficient Power Controller for a automatic power factor correction equipment to maintain the power factor. It is a simple and intelligent relay which measures,monitor and Controls the reactive energy. It comes with Easy Commisioning , Step Size detection and monitoring along with the variour alarms. VPL12 can be used for 12 steps in a PFC equippment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, Germany, Finland, France, India, Mexico, United States
Depth58 mm
Communications & Management Attributes
- Type Of Alarms
- step power loss < 75 %)message and alarm contact + step blocked, step faultymessage and alarm contact + step blocked, high current > 6 A CT)message and alarm contact, hunting (unstable regulation)message and alarm contact + step blockedlow current < 15 mA CT)message and alarm contact, overcompensationmessage and alarm contact, capacitor current overload (Irms/I1) > 130 % I1)message and alarm contact + step switched offOver Temperature 50 °C)message and alarm contact + step switched offOver Temperature 30 °C)fan switch, Over Voltage +/- 10 %)message and alarm contact + control stoppedtotal harmonic distortion > 7 %)message and alarm contact + step switched off
Physical Attributes
- Display Size
- 56 x 25 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Function Available
- manual programming, automatic initialisation, automatic detection, advanced programming (expert), any step sequence
- Measurement Accuracy
- voltage +/- 1 %, current +/- 1 %, frequency +/- 1 %energy (P,Q,S) +/- 2 %, cos φ +/- 2 %, total voltage harmonic distortion THD (U) +/- 2 %individual voltage harmonic +/- 3 %Temperature +/- 3 °C
- Settings Operating Mode
- automatic, manual
- Type Of Measurement
- capacitor current overload Irms/I1, individual voltage harmonic, power factor, operating time, cos φ, ambient temperature inside the cubicle, tan φ
- Certificate Agency
- EAC, NRTL, cNRTL, CE
- Carbon Footprint Of The Distribution Phase [A4]
- 0.23061, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.34502, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 155 kg CO2 eq., 154.82
- Local Publishable Date
- 2025-07-24
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Manufacturing Carbon Footprint
- 81.613
- End Of Life Carbon Footprint
- 1.01
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Current Of Common
- 10 A
- Device Connection
- communication Modbus RS485
- Display Type
- Backlit LCD
- Measurement Current
- 0-5 A
- Mechanical Durability
- 65000 cycles without maintenance
- Mounting Mode
- flush-mounted
- Number Of Quadrant Operation For Generator Application
- 4
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- power factor controller
- Range
- PowerLogic
- Service Life In Hours
- 100000 h without maintenance
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Power factor controllers manages reactive energy and provide accurate measurements with an intelligent relay function to ensure maximum efficiency during 10 years.& 10& 10In addition. it adheres to LV and environmental standards. such as IEC 61010-1. IEC 61000 6-2. IEC 61000 6-4. IEC 61326-1 and UL 61010
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 20
- Width Nominal
- 144 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 81.324
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 81.613
- Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
- 1.01
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 1125
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 1.3916
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 26.174
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 1202.7
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 298.25
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 126.29
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -11.071
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 1.6607
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 202.96
- Net Use Of Fresh Water (M3) End Of Life [C1-c4]
- 3.9757
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 22.778
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 1.475
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 1125
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
- 1.3916
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 26.174
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 5653.0179
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 2.8002
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 4447.5
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -11.961
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 687.07
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 7.7783
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 1117.2
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 1.3916
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 26.174
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 1.8543
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.08
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 687.07
- Customs Code
- 8537109160
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Information Displayednumber of switching cycles per step, individual step size in kVAr, remaining step capacity in %
Metering Typepower factor and displacement PF (signed, four quadrant), total current harmonic distortion THD (I)power factor average over lifetimetemperature maximumphase current I1, I2, I3 RMS on load, active power P, P1, P2, P3 on load, reactive power Q, Q1, Q2, Q3 on load, apparent power S, S1, S2, S3 on load, voltage U21, U32, U13, V1, V2, V3 on load
Time Delay Range1...6500 s on reconnection), 1...6500 s on response)
Type Of Settingchoice of stepping programs auto, choice of stepping programs LIFO, choice of stepping programs lineardelay between 2 successive switch on the same step 5...1200 s, step configuration programming auto, step configuration programming off, step configuration programming fixedtarget cos phi 0.7 inductive...0.7 capacitive, target cos phi dual cos φ
[Us] Rated Supply Voltage<= 999 kV AC with external VT, <= 999 kV AC with external VT, <= 999 kV AC with external VT, 90...550 V AC, <= 999 kV AC with external VT, <= 999 kV AC with external VT
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.01
Carbon Footprint Of The Manufacturing Phase [A1 To A3]82 kg CO2 eq., 81.613
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Service Catalog ItemSpare part
Use Carbon Footprint154.82
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1509016_V1
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2514
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeVPL 12
Data Recording5 alarms
Device Short NameVPL12
Energy Efficiency OptimizedFalse
Measurement Voltage90-550 V AC 50/60 Hz
Mounting Locationin cabinet
Mounting Supportpanel 1-3 mm
Operating Modemanual or automatic
Product NamePowerLogic PFC Controller
Provided EquipmentUser Manual
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint238 kg CO2 eq.
Pep CodeENVPEP1509016EN
Pep Verification Date2023-05-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
Height Nominal144 mm
Cut-out Dimensions138 x 138 mm
Package Weight(Lbs)727.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]154.64
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]154.82
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle4915.8658
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]2.8002
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]3760.5
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-11.445
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]1802.7
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-9.0174
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]3.0804
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]2.7567
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]330.11
Materials For Recycling (Kg) Installation [A5]0.06
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]19.456
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-1.9235
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle4915.8658
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]2.8002
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]3760.5
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-11.445
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1174.4
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]1.4797
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]26.838
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]49.4
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]0.6641
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]7.7783
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]2.8002
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3760.5
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-11.445
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.8543
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]47.546
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]0.6641
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1509016_V1
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-05-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint238.018629999999
Environmental DisclosureENVPEP1509016EN
Ip Degree Of Protectionfront face IP41rear face IP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1509016EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power factor controller
Provided EquipmentUser Manual
ETIM
- ETIM 8
- EC002758
ETIM 9EC002758
Output Attributes
- Output Type
- fan 1 A 48 V DC, alarm relay 1 A 48 V DC, control relay 0.2 A 110 V DCcontrol relay 1 A 48 V DCcontrol relay 2 A 400 V AC 50/60 Hz, control relay 1 A 24 V DCcontrol relay 5 A 250 V AC 50/60 Hz, control relay 5 A 120 V AC 50/60 Hz, fan 5 A 250 V AC 50/60 Hz, alarm relay 5 A 250 V AC 50/60 Hz
Number Of Step Output Contacts12
Input Attributes
- Input Type
- phase to phase, phase to neutral, insensitive to CT polarity, insensitive to phase rotation polarity, current input CT...X/5 A and X/1 A
Input Functionswitch 1 x dry contact
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$3787.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$3787.32/ EA
Loading add to cart quantity...
