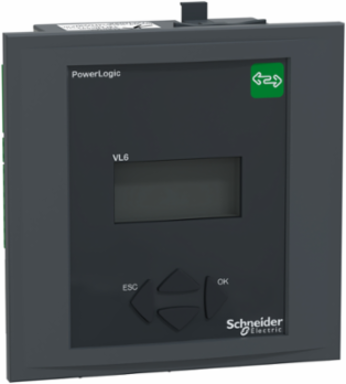

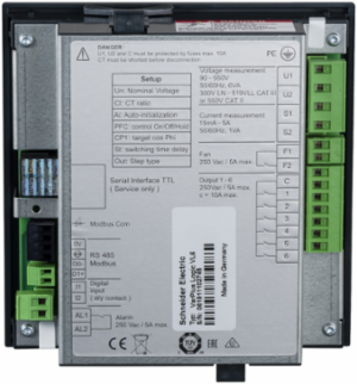

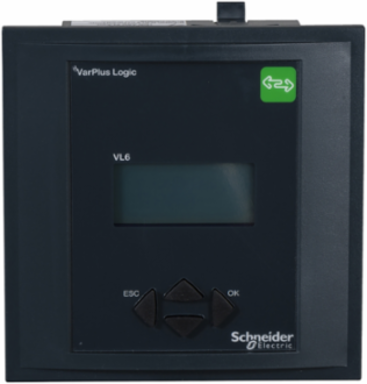

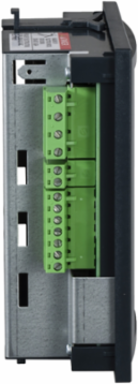

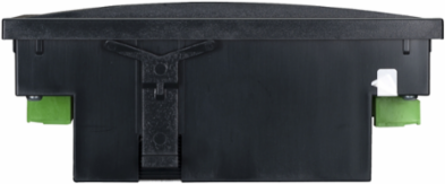

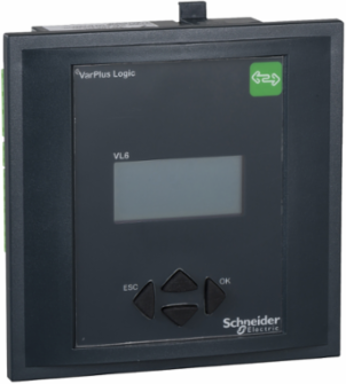

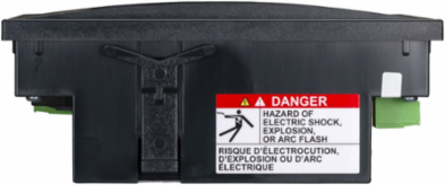

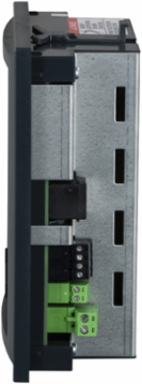

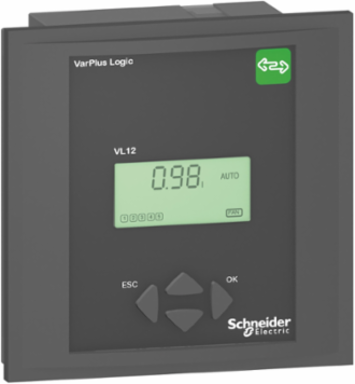

Schneider Electric VPL06N Power Factor controller, PowerLogic PFC Controller, VPL 6
- MPN: VPL06N
- PPN: SCH-VPL06N
CAD
$3348.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VarPlus logic is a simple and efficient Power Controller for a automatic power factor correction equipment to maintain the power factor. It is a simple and intelligent relay which measures,monitor and Controls the reactive energy. It comes with Easy Commisioning , Step Size detection and monitoring along with the variour alarms. VPL06 can be used for 6 steps in a PFC equippment
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, Germany, Finland, France, India, United States
Depth58 mm
Communications & Management Attributes
- Type Of Alarms
- step power loss < 75 %)message and alarm contact + step blocked, step faultymessage and alarm contact + step blocked, high current > 6 A CT)message and alarm contact, hunting (unstable regulation)message and alarm contact + step blockedlow current < 15 mA CT)message and alarm contact, overcompensationmessage and alarm contact, capacitor current overload (Irms/I1) > 130 % I1)message and alarm contact + step switched offOver Temperature 50 °C)message and alarm contact + step switched offOver Temperature 30 °C)fan switch, Over Voltage +/- 10 %)message and alarm contact + control stoppedtotal harmonic distortion > 7 %)message and alarm contact + step switched off
Physical Attributes
- Display Size
- 56 x 25 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Function Available
- automatic detection, advanced programming (expert), manual programming, any step sequence, automatic initialisation
- Measurement Accuracy
- voltage +/- 1 %, current +/- 1 %, frequency +/- 1 %energy (P,Q,S) +/- 2 %, cos φ +/- 2 %, total voltage harmonic distortion THD (U) +/- 2 %individual voltage harmonic +/- 3 %Temperature +/- 3 °C
- Settings Operating Mode
- manual, automatic
- Type Of Measurement
- ambient temperature inside the cubicle, tan φ, individual voltage harmonic, cos φ, operating time, power factor, capacitor current overload Irms/I1
- Certificate Agency
- EAC, NRTL, cNRTL, CE
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2006307, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3001674, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 155 kg CO2 eq., 154.82
- Local Publishable Date
- 2025-08-19
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Use Carbon Footprint
- 154.82
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1509016_V1
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2514
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- VPL 6
- Data Recording
- 5 alarms
- Device Short Name
- VPL6
- Energy Efficiency Optimized
- False
- Measurement Voltage
- 90-550 V AC 50/60 Hz
- Mounting Location
- in cabinet
- Mounting Support
- panel 1-3 mm
- Operating Mode
- manual or automatic
- Product Name
- PowerLogic PFC Controller
- Provided Equipment
- User Manual
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 227 kg CO2 eq.
- Pep Code
- ENVPEP1509016EN
- Pep Verification Date
- 2023-05-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 20
- Width Nominal
- 144 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 154.64
- Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
- 0.8787
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 3760.5
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 1802.7
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 109.8723
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 2.7567
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 202.96
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 22.778
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 978.75
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 1021.728
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 42.978
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 971.964
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.9396
- Customs Code
- 8537109160
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Information Displayednumber of switching cycles per step, remaining step capacity in %, individual step size in kVAr
Metering Typepower factor and displacement PF (signed, four quadrant), total current harmonic distortion THD (I)power factor average over lifetimetemperature maximumphase current I1, I2, I3 RMS on load, active power P, P1, P2, P3 on load, reactive power Q, Q1, Q2, Q3 on load, apparent power S, S1, S2, S3 on load, voltage U21, U32, U13, V1, V2, V3 on load
Time Delay Range1...6500 s on reconnection), 1...6500 s on response)
Type Of Settingchoice of stepping programs auto, choice of stepping programs LIFO, choice of stepping programs lineardelay between 2 successive switch on the same step 5...1200 s, step configuration programming auto, step configuration programming off, step configuration programming fixedtarget cos phi 0.7 inductive...0.7 capacitive, target cos phi dual cos φ
[Us] Rated Supply Voltage<= 999 kV AC with external VT, <= 999 kV AC with external VT, <= 999 kV AC with external VT, 90...550 V AC, <= 999 kV AC with external VT, <= 999 kV AC with external VT
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.8787
Carbon Footprint Of The Manufacturing Phase [A1 To A3]71 kg CO2 eq., 71.00331
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Service Catalog ItemSpare part
End Of Life Carbon Footprint0.8787
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Current Of Common10 A
Device Connectioncommunication Modbus RS485
Display TypeBacklit LCD
Measurement Current0-5 A
Mechanical Durability65000 cycles without maintenance
Mounting Modeflush-mounted
Number Of Quadrant Operation For Generator Application4
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower factor controller
RangePowerLogic
Service Life In Hours100000 h without maintenance
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPower factor controllers manages reactive energy and provide accurate measurements with an intelligent relay function to ensure maximum efficiency during 10 years.& 10& 10In addition. it adheres to LV and environmental standards. such as IEC 61010-1. IEC 61000 6-2. IEC 61000 6-4. IEC 61326-1 and UL 61010
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh351.9768
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US
Height Nominal144 mm
Cut-out Dimensions138 x 138 mm
Package Weight(Lbs)696.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]154.82
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]978.75
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]1046.349
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]259.4775
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]3.0804
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]287.1957
Materials For Recycling (Kg) Installation [A5]0.0522
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]1.475
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]3760.5
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4447.5
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]687.07
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3760.5
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]687.07
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1509016_V1
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-05-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint227.2028081
Environmental DisclosureENVPEP1509016EN
Ip Degree Of Protectionfront face IP41rear face IP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1509016EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power factor controller
Provided EquipmentUser Manual
ETIM
- ETIM 8
- EC002758
ETIM 9EC002758
Output Attributes
- Output Type
- fan 1 A 48 V DC, alarm relay 1 A 48 V DC, control relay 0.2 A 110 V DCcontrol relay 1 A 48 V DCcontrol relay 2 A 400 V AC 50/60 Hz, control relay 1 A 24 V DCcontrol relay 5 A 250 V AC 50/60 Hz, control relay 5 A 120 V AC 50/60 Hz, fan 5 A 250 V AC 50/60 Hz, alarm relay 5 A 250 V AC 50/60 Hz
Number Of Step Output Contacts6
Input Attributes
- Input Type
- insensitive to phase rotation polarity, insensitive to CT polarity, phase to neutral, current input CT...X/5 A and X/1 A, phase to phase
Input Functionswitch 1 x dry contact
