Leviton

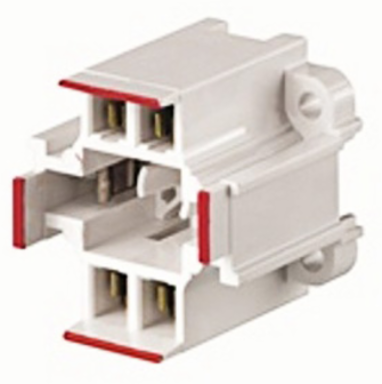

Leviton 26725-416 Vertical CFL Lamp Socket, 70W-600V, GX24Q-6 Base, UL/CSA Certified

Vertical CFL Lamp Socket, 70W-600V, GX24Q-6 Base, UL/CSA Certified
  • MPN: 26725-416
  • UPC: 078477110362
  • PPN: LEV-26725-416

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$7.54/ EA

Specifications

Product Features

Warranty
1 Year Limited
Mounting Orientation
Vertical
Color Code
Red
Country Of Origin
Mexico
Lamp Base
GX24q-6
Termination
Quick-Connect 18AWG Solid
Mounting Type
Bottom Screw-Down
Rated Wattage
75W
Voltage600 Volt
Light TypeFluorescent
Standards and CertificationsUL/CSA/NOM
Lamp Wattage70 W
Style NameStandard Body
Lamp Contacts4-Pin
AvailabilityDistribution
Lampholder TypeCompact

Electrical Specifications

Color Code
Red
Color
White
Lamp Wattage
70 W
Termination
Quick-Connect 18AWG Solid
Wiring Ports
2
Mounting TypeBottom Screw-Down
Mounting Holes4
Wire Strip Length3/8 Inch
Body StyleStandard Body

Standards and Certifications

CSA Certified
File LR-1863
UL Rated
Indoor/Outdoor when properly enclosed.
UL ListedFile E5833
NOM057

Mechanical Specifications

Mounting Orientation
Vertical
Body Material
Thermoplastic
Retainer Clip
Stainless Steel
Contact Material
Copper-Alloy
Mounting TypeBottom Screw-Down
TerminationQuick-Connect 18AWG Solid
AvailabilityDistribution

Downloads
