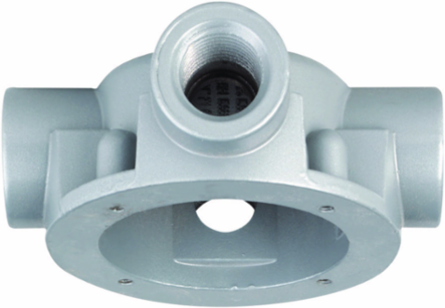

Killark VGX-1 Aluminum Ceiling Mount Splice Box 1/2 Inch Hub Size, 6.88 Inch x 3.75 Inch x 5.5 Inch

MPN: VGX-1
UPC: 783936750132
PPN: HBL-VGX-1
UNSPSC: 39111525

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$56.46/ EA

Qty:

Loading add to cart quantity...

Description

VGX Series - VSL Splice Box - Ceiling Mount - Hub Size 1/2 In

Features

Electrostatically applied epoxy/polyester finish
Modular design
Hubs are threaded for attachment to conduit
Set screws in pendant fixture
Copper-free aluminum (less than .004%)
Ceiling mount splice box for V Series.

Specifications

Country of Origin: Mexico

Hub Size: 1/2"

Color: Gray

Height: 5.5 in

Mounting: Ceiling

Special Features: Ceiling mount splice box for V Series.

Width: 3.75 in

Mounting Type: Ceiling

ARRA Compliant: Contact Manufacturer

Description - Invoice: SPLICE BOX CEILING MOUNT 1/2"

Harmonization Code: 7616995190

Lead Time: 42 wk

Order Multiple: 1 EA

Sub Class Code: D20D225

Material: Aluminum, Copper Free (less than 4/10 of 1%)

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 3.000 lb.

Carton - Pack Description: Carton

Carton - Total Units: 5

Dimensions6.88 in x 3.75 in x 5.5 in

ApplicationFor use with V Series lighting.

FinishPowder Epoxy Paint

Length6.88 in

Number Of Lamps0

TypeAluminum Ceiling Mount Splice Box

Finish TypePowder Epoxy Paint

Number of Lamps0

Class CodeD20

Freight Class Code06316009

Image Actual Or RepresentativeA

MSDS FlagNo

Returnable IndicatorYes

Gross Weight with Packaging0.6

SeriesV Series

BOX SIZE4.000x7.625x5.750 (in)

Carton - Number of Sub Packs5

Carton - SCC-14 Next Lower Level Sub Pack00783936750132

Master Pack DescriptionEach

Certifications

EU RoHS Indicator: Contact Manufacturer
