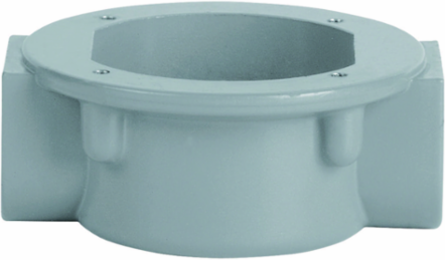

Killark VGC-2 Aluminum Ceiling Mount Splice Box 3/4 Inch Hub Size, 6.88 x 3.75 x 5.5 Inch

MPN: VGC-2
UPC: 783936750040
PPN: HBL-VGC-2
UNSPSC: 39111525

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$56.65/ EA

Qty:

Loading add to cart quantity...

Description

VGC Series - VSL Splice Box - Ceiling Mount - Hub Size 3/4 In

Features

Electrostatically applied epoxy/polyester finish
Modular design
Hubs are threaded for attachment to conduit
Set screws in pendant fixture
Copper-free aluminum (less than .004%)
Ceiling mount splice box for V Series.

Specifications

Finish: Powder Epoxy Paint

Number Of Lamps: 0

ARRA Compliant: Contact Manufacturer

Country of Origin: MX

Each - Width: 3.750 in

Hub Size: 3/4"

Width: 3.75 in

Finish Type: Powder Epoxy Paint

Number of Lamps: 0

Class Code: D20

Freight Class Code: 06316009

Image Actual Or Representative: A

MSDS Flag: No

Returnable Indicator: Yes

Gross Weight with Packaging: 0.37

Series: V Series

BOX SIZE: 4.125x7.750x6.000 (in)

Carton - Number of Sub Packs: 5

Carton - SCC-14 Next Lower Level Sub Pack: 00783936750040

Master Pack Description: Each

MountingCeiling

Special FeaturesCeiling mount splice box for V Series.

ColorGray

Dimensions6.88 in x 3.75 in x 5.5 in

Height5.5 in

Length6.88 in

ApplicationFor use with V Series lighting.

Mounting TypeCeiling

TypeAluminum Ceiling Mount Splice Box

Description - InvoiceSPLICE BOX CEILING MOUNT 3/4"

Harmonization Code7616999999

Lead Time42 wk

Order Multiple1 EA

Sub Class CodeD20D225

MaterialAluminum, Copper Free (less than 4/10 of 1%)

Base Unit of MeasureEA

Carton - Gross Weight per Pack1.850 lb.

Carton - Pack DescriptionCarton

Carton - Total Units5

Certifications

EU RoHS Indicator: Contact Manufacturer
