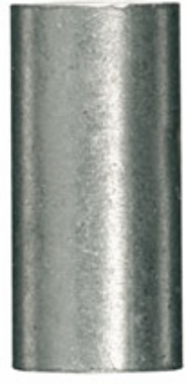

Weidmuller 0248500000 VH 13.5/4.9/3.3 SAK4
- MPN: 0248500000
- PPN: WDM-0248500000
CAD
$0.67
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Connecting sleeve, for cross-connection link, Number of poles: 1
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 4.9 mm |
|---|---|
| Height | 4.9 mm |
| Depth | 13.5 mm |
| Net weight | 0.9 g |
| Width (inches) | 0.193 inch |
|---|---|
| Height (inches) | 0.193 inch |
| Depth (inches) | 0.531 inch |
| Diameter | 4.9 mm |
Dimensions
| Diameter | 4.9 mm |
|---|
| TS 32 offset | 32.5 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | Copper |
|---|
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-01 |
System Specifications
| Version | for cross-connection link |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
