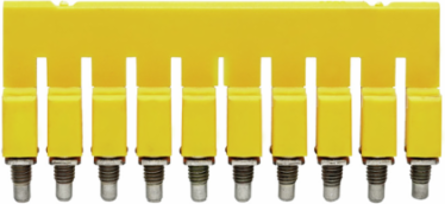

Weidmuller 1054460000 WQV 2.5/10
Weidmuller 1054460000 WQV 2.5/10
- MPN: 1054460000
- PPN: WDM-1054460000
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.73/ EA
Description
W-Series, Cross-connector, For the terminals, Number of poles: 10
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 7 mm
- Height
- 49.9 mm
- Depth
- 18 mm
- Net weight
- 7.75 g
Width (inches)0.276 inch
Height (inches)1.965 inch
Depth (inches)0.709 inch
Dimensions
- Pitch in mm (P)
- 5.1 mm
Additional Technical Data
- Installation advice
- Direct mounting
Type of fixingwhen screwed in
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-0
Colouryellow
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
UNSPSC30-21-18-01
System Specifications
- Version
- For the terminals
Cross-Connector
- Number of cross-connected terminals
- 10
- Rated current, multi-pole
- 32 A
- Type
- Cross-connector
Rated current, 2-pole32 A
Tightening torque range for fixing screw0.4...0.8 Nm
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated current
- 32 A
Downloads
