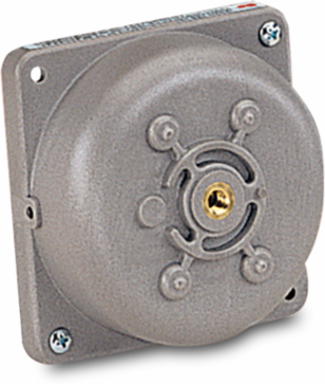

Vibrating Bell Mechanism, UL and cUL, 125VDC, Gong Sold Separately
Federal Signal

Federal Signal 600-125-1 Vibrating Bell Mechanism, UL and cUL, 125VDC, Gong Sold Separately

  • MPN: 600-125-1
  • UPC: 782979309352
  • PPN: FDS-600-125-1
  • UNSPSC: 46171602

CAD

$589.25

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Vibratone® heavy duty bells allow for greater flexibility and selection by utilizing the modular approach to combine gongs and mechanisms.Three gong sizes are available: Model A4 (4" dia.), Model A6 (6" dia.), and Model A10 (10" dia.). Each size larger gong produces a different tone and a higher dBa output. Vibrating bells produce a continuous ringing sound when voltage is applied.Two vibrating mechanisms are available: Model 500 (available in 24VAC, 120VAC and 240VAC) and Model 600 (available in 12VDC, 24VDC and 125VDC).Vibratone® bells can be used in any industrial application, whether to signal danger or for start and dismissal. A variety of mounting accessories will accommodate almost any environment.

Features

  • Three gong sizes – four, six, or ten-inch
  • Decibel output range dependent on gong: 98-102 dBa @ 10' (108-112 dBa @ 1m)
  • Optional weatherproof back box (WB) provides Type 3R enclosure
  • Models 500 and 600 are CSA Certified
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Gray
Availability
Ships in 10 business days
Operating Temp.
-31° to +150°F (-35° to +66°C)
Depth
4.0 in, 10.16 cm
Width
4.0 in, 10.16 cm
Weight1 lbs
Certification ListingCSA, UL, cUL
Mount TypeWall
Audible Signals Model Description600-125-1 125VDC Vibrating Mechanism
Height4.0 in, 10.16 cm
