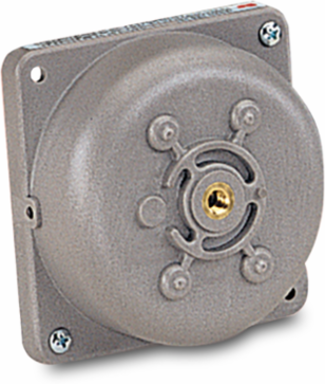

Federal Signal 500-024-1 Vibrating Bell Mechanism, UL and cUL, 24VAC, Gong Sold Separately
Federal Signal 500-024-1 Vibrating Bell Mechanism, UL and cUL, 24VAC, Gong Sold Separately
- MPN: 500-024-1
- UPC: 782979299905
- PPN: FDS-500-024-1
- UNSPSC: 46171602
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$335.05/ EA
Description
Vibratone® heavy duty bells allow for greater flexibility and selection by utilizing the modular approach to combine gongs and mechanisms.Three gong sizes are available: Model A4 (4" dia.), Model A6 (6" dia.), and Model A10 (10" dia.). Each size larger gong produces a different tone and a higher dBa output. Vibrating bells produce a continuous ringing sound when voltage is applied.Two vibrating mechanisms are available: Model 500 (available in 24VAC, 120VAC and 240VAC) and Model 600 (available in 12VDC, 24VDC and 125VDC).Vibratone® bells can be used in any industrial application, whether to signal danger or for start and dismissal. A variety of mounting accessories will accommodate almost any environment.
Features
- Three gong sizes – four, six, or ten-inch
- Decibel output range dependent on gong: 98-102 dBa @ 10' (108-112 dBa @ 1m)
- Optional weatherproof back box (WB) provides Type 3R enclosure
- Models 500 and 600 are CSA Certified
- UL and cUL Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Gray
- Availability
- Ships in 10 business days
- Operating Temp.
- -31° to +150°F (-35° to +66°C)
- Audible Signals Model Description
- 500-024-1 24VAC Vibrating Mechanism
- Height
- 4.0 in, 10.16 cm
Weight1 lbs
Certification ListingCSA, UL, cUL
Mount TypeWall
Operating Voltage24 Vac
Depth4.0 in, 10.16 cm
Width4.0 in, 10.16 cm
